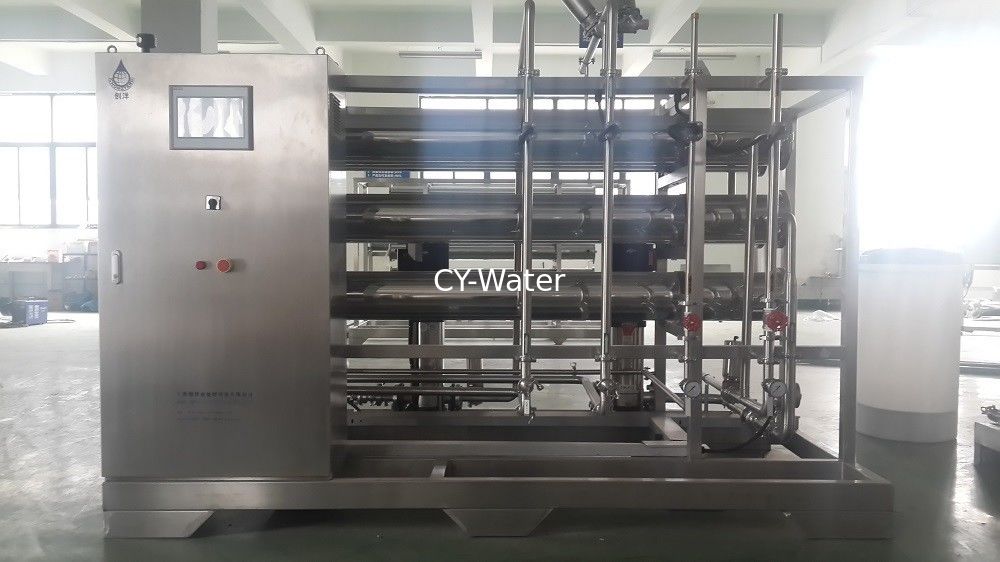

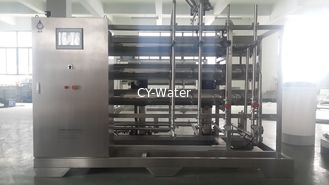

Siemens PLC Control Pharmaceutical Water Treatment Plant / Pharmaceutical Water System
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Standard: | FDA , CGMP , GMP , USP | Electrical Control: | Siemens PLC |
|---|---|---|---|
| Pump Brand: | CNP , Grundfos | Capacity: | 0.25m3/h--30m3/h |
| Material: | Full SS 304 316 | Recovery Rate: | >70% |
| High Light: | water treatment system in pharmaceutical industry,pharmaceutical water treatment system |
||
Product Name:Pharmaceutical Water Treatment Plant equipment plant RO system
Product profile :
Purified Water is the important raw material during pharmaceutical production. It is penetrated into whole production process including raw material production.Purified water production,finished product preparation ,washing and cleaning .During pharmaceutical production. Purified water is a vital components.Our purified water products are arranged according to three-dimensional design of workshops .In strict accordance with new version GMP,EU,and FDA requirements .Provide clients with more rational technical products based on different raw water quality.
Poduct Technical Data:
| Model | Capacity (Ton/hour) | General Power(KW) | Electrical Power(50-60Hz) |
Membrane (Pic) |
Size (L*W*H) ( mm) |
Weight(Kg) |
| CY-RO-100L/H | 0.1 | 0.2 | AC220V | EC4021-800A | 690*570*1490 | 100 |
| CY-RO-300L/H | 0.3 | 2.75 | AC220V 18A / 380V 9A | ESPA4040*2 | 1550*900*1820 | 150 |
| CY-RO-500L/H | 0.5 | 2.75 | AC220V 18A / 380V 9A | ESPA4040*3 | 1550*900*1820 | 250 |
| CY-RO-700L/H | 0.7 | 4.25 | AC220V 27.5A / 380V 13A | ESPA4040*4 | 1550*900*1820 | 350 |
| CY-RO-1000L/H | 1 | 3.75 | AC220V 24A / 380V 12A | ESPA4040*4 | 1980*900*1940 | 500 |
| CY-RO-2000L/H | 2 | 4.75 | AC380V 8.8A | ESPA4040*6 | 4800*700*2050 | 700 |
| CY-RO-3000L/H | 3 | 5.75 | AC380V 10A | ESPA4040*7 | 6000*800*2200 | 800 |
| CY-RO-4000L/H | 4 | 7.5 | AC380V 12A | ESPA4040*8 | 7000*900*2400 | 1000 |
| CY-RO-5000L/H | 5 | 12.5 | AC380V 25A | ESPA8040*9 | 8000*1000*2700 | 1500 |
| CY-RO-6000L/H | 6 | 15 | AC380V 30A | ESPA4040*10 | 4300*1000*2300 | 1700 |
| CYRO-12000L/H | 12 | 19 | AC380V 35A | ESPA8040*12 | 8500*1600*1920 | 2500 |
| CYRO-15000L/H | 15 | 19 | AC380V 35A | ESPA8040*15 | 10100*1870*3000 | 4000 |
| CYRO-20000L/H | 20 | 22.5 | AC380V 45A | CPA28040*20 | 10000*1700*4200 | 4600 |
| CYRO-30000L/H | 30 | 37.5 | AC380V 68A | CPA28040*25 | 13000*1900*3500 | 6000 |
| CYRO-50000L/H | 50 | 56 | AC380V 120A | CPA28040*54 | 13500*2300*3800 | 9900 |
Note:
We would require for a raw water analysis / test report for inquiries of water treatment system for any inquiry.
For more details, please contact me directly.
