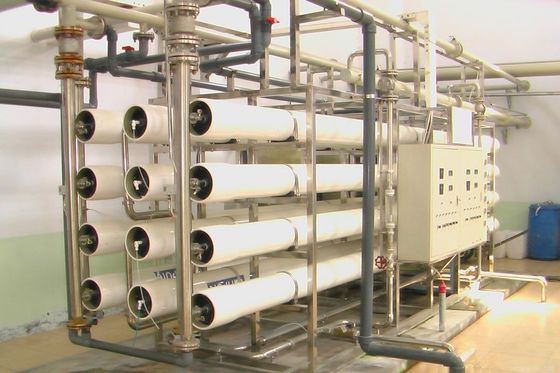

Double RO / Single RO Food And Beverage Water Treatment System for Pure Drinking Water

Name: Double RO / Single RO Food And Beverage Water Treatment System for Pure Drinking Water
Brand: CY-Water
SKU: CY-RO-20000L/H
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (123 reviews)

Large Image : Double RO / Single RO Food And Beverage Water Treatment System for Pure Drinking Water Get Best Price

Product Details:

Place of Origin:	Shanghai, China (Mainland)
Brand Name:	CY-Water
Certification:	ISO ,CE
Model Number:	CY-RO-20000L/H

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export Standard and Wood Package
Delivery Time:	35 days after receiving the deposit .
Supply Ability:	100 sets/ Month

Contact Now

Detailed Product Description

Capacity:	0.25m3/h--200m3/h	Monitoring Method:	On-line
Recovery Rate:	>70%	Process:	Double RO Or Single RO
Desalting Rate:	>99%	RO Membrane:	U.S.A , Korea
High Light:	drinking water treatment machine , mineral water purification plant

Product Name : RO System Pure Drinking Water Filter Plant for Beverage industry

Components Function of CY-RO Equipment

Product Name	Function
Raw water tank	Storage raw water ,regulating the water intake,and precipitation of the impurities in the water.
Sand filter	it can remove sediment,impurity ,suspended objects and the other particles in water to reduce turbidity of water.
Carbon filter	The used of carbon adsorption principle that to absorb the different colors,odors,residual chlorine and so on .
Softener	The used of special resin absorb Ca &Mg ions in water ,then replace them ,that to reduce water hardness.
Security filter	Prevent impurity of big particles into Reverse Osmosis Membrane ,resulting in damage to membrane ,that can protect RO Membrane.
Reverse Osmosis	By Principle of Reverse Osmosis to achieve purpose of producing pure water.
Double Stage Pure Water Tank	Storage RO Water ,that provide pure water source for the latter system
PH Regulation System	By PH regulation to reomove CO2 from water to ensure quality of production water .
UV Sterilizer	Killing residual bacteria in water to ensure water quality
Nanofiltration Membrane	Remove bacteria that killed by UV and the other particles .
Ozone Sterilization	Used for cleaning purified water pipe and purified water tank.
Booster Pump of Purified Water	Used for transporting pure water for water points .

The product process :

Raw water tank----Backwashing Pump -----Sand Filter---The storage tank----Constant Pressure Water Supply System in producing room
Raw water tank ----The Raw Water Booster Pump----Multi-medium filter----Activated Carbon Filter----UV---Safe Filter---the high pressure pump----RO System---UV---Pure Water Tank
