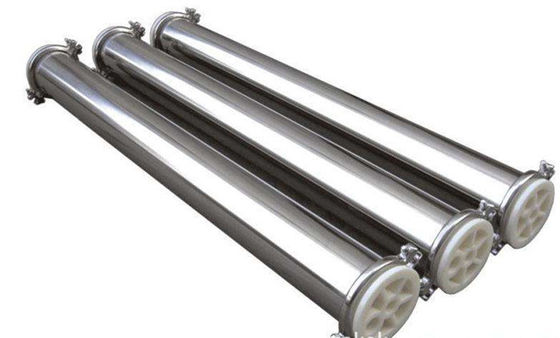

Product Name:Built in type SUS 304 Material 8inch RO Membrane Housing for water treatment

Membrane Housing ABS End Cap SUS Seamed Pipe 4040 RO Membrane Housing

CY-Water Product : Stailess Steel RO Membrane Housing ,8”HYDRANAUTICS Membrane Housing ,SS 304

Specification:

Suitable Type: 8040,8040-1-2-3-4-5 etc,

Material: SS 304

Treatment: Polished inside and outside

Pressure : high pressure withstand

We can also produce the other memebrane housing ,such as 1812 membrane housing ,2540 membrane housing ,4021 membrane housing.

8040 Housing detailed introduction :

Product Name: 8040 steamless membrane housing

The other Name: RO Membrane Housing ,UF Membrane Housing

Product Type: CY-GLQ-MK

Product Material:SS304

The working pressure: 15 psi

Treatment : Polished

Opening Method : Built-in type

Inlet Method :Both ends of water

Scope of application:

The membrane is divided into SS 304 / 316 RO Membrane Housing and FRP RO Membrane according to material . According to application ,they are divided in house membrane housing and commercial housing .they have ultra-low membrane housing ,low membrane housing ,sea water desalination housing from their function.

The housing performance :

8040 Membrane Housing : Ferrule type and end cover ,which adopt SUS 304 Seamless SS pipe , Excellent sealing property , High pressure withstand ,Instal and clean Membrane easily .4.0 Mpa working pressure .the inlet &outlet of memebrane is customized according to client’s requirement ,end inlet (outlet ) or side inlet (outlet).The RO Membrane is 2.5”,4”,8” and so on.

1. 4” RO Membrane has 1 core ,2 core ,3 core, 4 core and so on .
2. The membrane housing is two type ,such as seam tube and seamless tube .
3. There are two connection way of inlet &outlet ,one way : the side enter water then water exit from the end, or the end enter water then water exit from the end ,the specificaion is 6” X4” and 4”&4” .
4. The material of head is ABS ,Stailess Steel .

The 8040 housing feature:

1. Reliable and simple structure
2. Good design for polished outer layer
3. The safety bolt
4. The design of high quality polished inner layer is easier to assemble membrane core.

8040 Membrane Choice Type :
