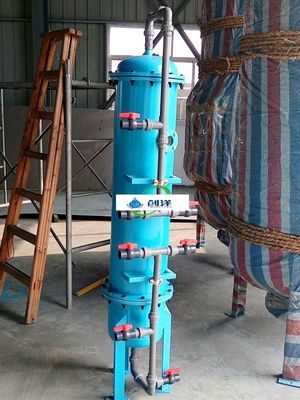

Ultrapure water mixed bed filter with Polished Painting Surface

Name: Ultrapure water mixed bed filter with Polished Painting Surface
Brand: CY-Water
SKU: CY-GLQ-2000
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (132 reviews)

Large Image : Ultrapure water mixed bed filter with Polished Painting Surface Get Best Price

Product Details:

Place of Origin:	Shanghai , C
Brand Name:	CY-Water
Certification:	ISO,CE
Model Number:	CY-GLQ-2000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Export Standard or According to clients' requirement

Contact Now

Detailed Product Description

Application:	Water Treatment	Surface Treatment:	Polished , Painting ,glass Bead Blast
Sample Time:	Around 7-15 Days	Material:	Sus304/316L, Carbon Steel
Product Name:	Mechanical Filter	Quality:	ISO 9001:2008
High Light:	stainless steel filter housing , ro membrane housing

Product Name: Ultrapure water mixed bed filter with Polished Painting Surface

Product Brief Introduction
The ion Exchange Pure Water Equipment is a traditional exchanged water process which variours anion & cation in water is exchanged by anion &cation resin .The anions and cation resin can form ion exchange cation bed system ,ion exchange anions bed system and mixed bed system according to the different proportions collocation ,the mixed bed system is usually used after RO System to prepare ultrapure water to be the end process of high purify water . It is the one of irreplaceable process which produce ultrapure water or the high purify now . The conductivity of outlet water can be to below 1uS/cm ,the resistivity is up to above 1MΩ.cm .The resistivity of outlet can be controlled between 1~18MΩ.cm according to the different water quality and used requirements .It is widely used in electronic ,electric ultrapure water ,chemical ,electroplate ultrapure water , boiler supply water ,pharmaecutical water .
The Basic Parameters
Brand Type:	LMH012
Mark Date:	2003
Material	304 316 ,carbon steel Q235 lining adhesive
Diameter	400mm~~3000mm (Various Spec.)
Thickness	2mm~~10mm (Customized)
Reference Flow	0.5T~~100T
Filter Material Selection:	Anion & Cation Resin etc
Filter Area	0.125㎡~~7㎡(We have a lot of spec according to the different filter area)
Treatment Process	Graphic preparation,shear plate blanking , argon arc welding ,testing ,the second welding ,polishing,packaging etc.
The accessory	Pipe &Valve ,pump etc.
Application	Demineralized Water ,Pure Water ,The high purity water,power plant ,boiler ,foodstuff &drinking ,beverage ,pharmaceutical water etc
The diameter of filter material:	0.01~100μm 0.01~100μm
Filter floor height	1350mm,
Inner diameter of filter	167~~850mm
Total height of filter	1350mm (Customized )
The Basic Functional Features:
Features:
Good replacement effect , the regeneration cycle is long and save cost .
Easily used ,maintenance ,running cost is low.
The producing water effect is good , the small footprint . Resin can be used repeatedly regeneration ,the resin has long service life.
	Classification & Features
	The pipeline of single Flow Type Machine Filter is simple and smooth operation .The filtration speed is usually 4--50m/n,and the Running period is 8 Hours .The double flow machanical filter is arranged inlet water device at the upper and lower ends ,the middle part is arranged outlet device .Its advantage is that the fultration water is large flow ,the ability of removing pollution is high ,the running period is long ,and it is 20 hours , the complex pipe system is its defect ,running unstability ,and it is difficult to flush filter material .
	The main technical parameter of Mechanical Filter
	The working pressure:0.05MPa～0.6MPa ,the temperature:5℃～40℃(special temperatuer is customized ),single flow :0.5m3/h～80m3/h,operation method :Manual & automatical control .Filter speed:5m3/h～12m3/h,Maximum 15m3/h ,Product spec.:Φ223～Φ3000,Cartridge Material : 304,316L,Q235 line with rubber & Glass Coating epoxy.
