Quartz Sand Water Treatment Accessories , 0.05Mpa - 0.07MPA Pressure Stainless Steel Filter Housing

Name: Quartz Sand Water Treatment Accessories , 0.05Mpa - 0.07MPA Pressure Stainless Steel Filter Housing
Brand: CY-Water
SKU: CY-GLQ-2000
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (191 reviews)

Large Image : Quartz Sand Water Treatment Accessories , 0.05Mpa - 0.07MPA Pressure Stainless Steel Filter Housing Get Best Price

Product Details:

Place of Origin:	Shanghai , C
Brand Name:	CY-Water
Certification:	ISO,CE
Model Number:	CY-GLQ-2000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Export Standard or According to clients' requirement

Contact Now

Detailed Product Description

Product Name:	Stainless Steel Filter Housing	Operature Temperature:	5 ~ 40 ℃
Material:	Sus304/316L, Carbon Steel	Replace Pressure:	0.05Mpa-0.07MPA
Seal Type:	O-ring Or Flat Washer	Seal Material:	PTFE, Rubber
High Light:	stainless steel filter housing , ro membrane vessel

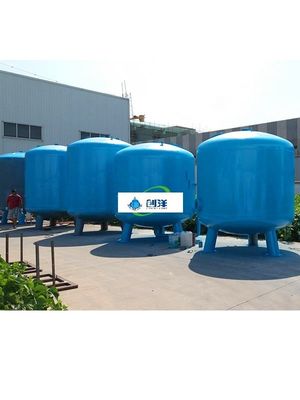

Product Name: Quartz sand mechanical filter for water treatment equipment pretreatment

Produc Profile:
Application of Silica Sand Water Filter/Mechanical Filter

Chemical, petroleum industrial, pharmaceutical, light industry, food, mineral processing, water treatment, electroplating, metallurgy, textile, dye industry.

Working Principle of Silica Sand Water Filter/Mechanical Filter

Mechanical sand filter, also known as pressure filter, is an important part of the pre-pure water pretreatment and water purification systerms.Mechanical sand filter packing is mainly used to reduce water turbidity, remove the water suspended particles, organic matter, colloidal particles, microorganisms, residual chlorine and some heavy metal ions.
The turbidity of raw water require less than 20 degrees, and it will up to 3 degrees when the filtration completed.

Product Specification:

Industrial Water Treatment Equipment Silica Sand Water Filter/Mechanical Filter
Model	B (mm)	D (mm)	H (mm)	F (mm)	In/Out	Vent
GLQ-1/300*1200	1200	∅300	1800	300	1"	3/4"
GLQ-1/400*1500	1500	∅400	2150	300	1"	3/4"
GLQ-1/500*1500	1500	∅500	2230	300	1-1/4"	1"
GLQ-1/600*1500	1500	∅600	2290	300	1-1/4"	1"
GLQ-1/700*1500	1500	∅700	2340	300	1-1/2"	1"
GLQ-1/800*1500	1500	∅800	2390	300	1-1/2"	1"
GLQ-1/900*1500	1500	∅900	2600	300	1-1/2"	1"
GLQ-1/1000*1500	1500	∅1000	2750	400	1-1/2"	1"
GLQ-1/1100*1500	1500	∅1100	2800	400	2"	1-1/4"
GLQ-1/1200*1500	1500	∅1200	2850	400	2"	1-1/4"
GLQ-1/1400*1500	1500	∅1400	2950	400	2"	1-1/4"
GLQ-1/1500*1800	1800	∅1500	3360	400	2"	1-1/4"
GLQ-1/1600*1800	1800	∅1000	3500	400	2-1/2"	1-1/2"
GLQ-1/1800*1800	1800	∅1100	3610	400	2-1/2"	1-1/2"
GLQ-1/2000*1800	1800	∅1200	3710	400	3"	1-1/2"
GLQ-1/2200*1800	1800	∅1400	3810	400	3"	1-1/2"
GLQ-1/2500*2000	2000	∅1500	3860	400	3"	1-1/2"
