Industrial Water Treatment Equipment Silica Sand Water Filter ISO 9001 Approval
Product Details:
|
Detailed Product Description
| High Processing Performance: | Flow Rate Up To 10,000 M3/h | Global Presence: | Worldwide Service |
|---|---|---|---|
| Sample Time: | Around 7-15 Days | Material: | PTFE, Rubber |
| Product Name: | Mechanical Filter | Quality: | ISO 9001:2008 |
| High Light: | stainless steel filter housing,ro membrane housing |
||

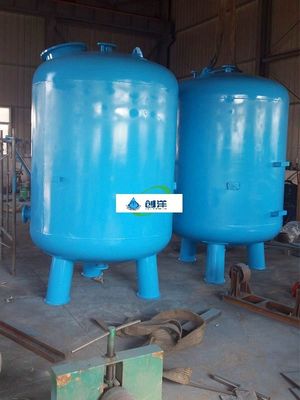

Product Name: Industrial Water Treatment Equipment Silica Sand Water Filter/Mechanical Filter
Produc Profile:
Application of Silica Sand Water Filter/Mechanical Filter
- Chemical, petroleum industrial, pharmaceutical, light industry, food, mineral processing, water treatment, electroplating, metallurgy, textile, dye industry.
Working Principle of Silica Sand Water Filter/Mechanical Filter
- Mechanical sand filter, also known as pressure filter, is an important part of the pre-pure water pretreatment and water purification systerms.Mechanical sand filter packing is mainly used to reduce water turbidity, remove the water suspended particles, organic matter, colloidal particles, microorganisms, residual chlorine and some heavy metal ions.
- The turbidity of raw water require less than 20 degrees, and it will up to 3 degrees when the filtration completed.
Product Specification:
| Industrial Water Treatment Equipment Silica Sand Water Filter/Mechanical Filter | ||||||
| Model | B (mm) | D (mm) | H (mm) | F (mm) | In/Out | Vent |
| GLQ-1/300*1200 | 1200 | ∅300 | 1800 | 300 | 1" | 3/4" |
| GLQ-1/400*1500 | 1500 | ∅400 | 2150 | 300 | 1" | 3/4" |
| GLQ-1/500*1500 | 1500 | ∅500 | 2230 | 300 | 1-1/4" | 1" |
| GLQ-1/600*1500 | 1500 | ∅600 | 2290 | 300 | 1-1/4" | 1" |
| GLQ-1/700*1500 | 1500 | ∅700 | 2340 | 300 | 1-1/2" | 1" |
| GLQ-1/800*1500 | 1500 | ∅800 | 2390 | 300 | 1-1/2" | 1" |
| GLQ-1/900*1500 | 1500 | ∅900 | 2600 | 300 | 1-1/2" | 1" |
| GLQ-1/1000*1500 | 1500 | ∅1000 | 2750 | 400 | 1-1/2" | 1" |
| GLQ-1/1100*1500 | 1500 | ∅1100 | 2800 | 400 | 2" | 1-1/4" |
| GLQ-1/1200*1500 | 1500 | ∅1200 | 2850 | 400 | 2" | 1-1/4" |
| GLQ-1/1400*1500 | 1500 | ∅1400 | 2950 | 400 | 2" | 1-1/4" |
| GLQ-1/1500*1800 | 1800 | ∅1500 | 3360 | 400 | 2" | 1-1/4" |
| GLQ-1/1600*1800 | 1800 | ∅1000 | 3500 | 400 | 2-1/2" | 1-1/2" |
| GLQ-1/1800*1800 | 1800 | ∅1100 | 3610 | 400 | 2-1/2" | 1-1/2" |
| GLQ-1/2000*1800 | 1800 | ∅1200 | 3710 | 400 | 3" | 1-1/2" |
| GLQ-1/2200*1800 | 1800 | ∅1400 | 3810 | 400 | 3" | 1-1/2" |
| GLQ-1/2500*2000 | 2000 | ∅1500 | 3860 | 400 | 3" | 1-1/2" |
