Stainless Steel Water Treatment Accessories For Medical Water Customize Design

Name: Stainless Steel Water Treatment Accessories For Medical Water Customize Design
Brand: CY-Water
SKU: CY
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (118 reviews)

Large Image : Stainless Steel Water Treatment Accessories For Medical Water Customize Design Get Best Price

Product Details:

Place of Origin:	Shanghai, China (Mainland)
Brand Name:	CY-Water
Certification:	ISO,CE
Model Number:	CY

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export Standard and Wood Package
Delivery Time:	In the stock
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Material:	SS 304 , 316	Pressure:	0.6-1.6MPa
Inlet And Outlet:	1-14 Inch Or Customized	Rated Working Pressure:	10, 20,, Kg / Cm2
Temperature:	5 ℃ -100 ℃	Replace The Pressure:	0.05Mpa-0.07MPA
High Light:	ro membrane vessel , ro membrane housing

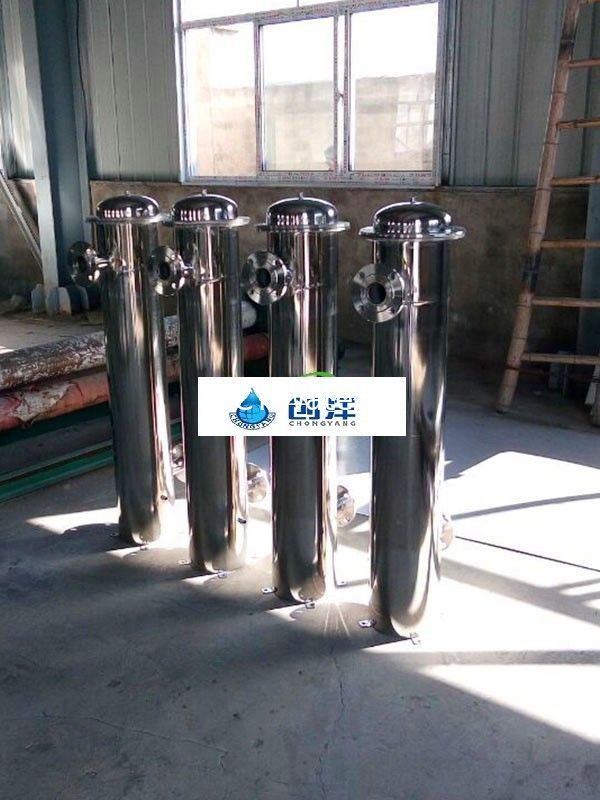

Product Name: Stainless Steel Bag Filter Housing For Water Treatment For Medical Water

Working Principle:

Bag filter is a widely used for liquid filtration,it can remove the particles of different size from liquid,in order to achieve liquid filtration,purification,separation,recovery purposes.It consists of three parts:bag housing,supporting basket and filter bags.According to flow rate,you may use multiple bags in a bag housing.First,the liquid enter into the housing from the inlet,which may placed in the side or on the top,and then flow into the filter bag which is braced by basket.Due to the impact pressure of fluid,the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet pipe.Impurities are trapped in the bag,the filtration process is complete.When you replace or clean the bag,just simply loosen the bolt,rotary hand wheel lifting the lid,and get the bag.

Technical Parameter

Standard	GB, American Standard, German standard, Japanese standard, customized; single bag, parallel bag, multi-bag, cartridge
Models	S, T series, PBF polypropylene containers etc.,
Single bag flow	6-1088T/H
Working pressure	0.05Mpa-0.6Mpa
Material	304.316L
Working temperature	5-40(Special temperature can be customized)
Filtering accuracy	1um-800um
Operation mode	Manual or automatic control cylinder
High-strength support basket	by uniform pore size of high-strength stainless steel mesh manufacture of 3.5mm;
Inlet and outlet	1-14 inch or customized
Inlet and outlet Location	Side into and side out, side into and bottom out, top into and bottom out, top into and side out or customized
Interface Type	flange, screw thread or customized
Bag model	and non-calibration
Filtration precision	1-800um (microns) relative or absolute precision
Seal ring material categories	general nitrile rubber, Teflon, nylon, Te Fulong acid such as high temperature and high-performance specialty materials
Type of bag	pure polypropylene, polyester, wool, viscose fiber, aromatic polyamide, Teflon, nylon and other materials
Structure of bag	Single screen (surface filtration structure, pore size of 100 to 800 microns), needle felt cloth (three-dimensional structure of fluffy deep filter, pore size of 1 to 200 microns) and melt blown nonwovens (deep bed filtration structure, pore size of 1 to 100 microns) three, and there are a variety of ~ 800 micron filtration precision to choose from, in order to meet the requirements of different production processes. Acid, high temperature and other characteristics of the bag material can be adapted to different filtered liquid chemical compatibility requirements.
