GB150 Standard High Precision Cartridge Filter with O - Ring / Flat Washer Seal

Name: GB150 Standard High Precision Cartridge Filter with O - Ring / Flat Washer Seal
Brand: CY-Water
SKU: CY
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (177 reviews)

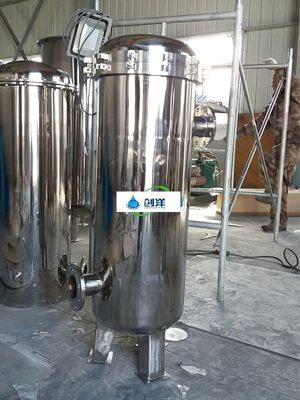

Large Image : GB150 Standard High Precision Cartridge Filter with O - Ring / Flat Washer Seal Get Best Price

Product Details:

Place of Origin:	Shanghai, China (Mainland)
Brand Name:	CY-Water
Certification:	ISO,CE
Model Number:	CY

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export Standard and Wood Package
Delivery Time:	In the stock
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Product Name:	Cartridge Filter For Water Treatment	Seal Type:	O-ring Or Flat Washer
Cartridge Quality:	1 Core To 180 Cores	Filter Length:	10"---40"
Temperature:	5 ℃ -100 ℃	Replace The Pressure:	0.05Mpa-0.07MPA
High Light:	ro membrane vessel , ro membrane housing

Product Name:Stainless steel beer precision water cartridge filter for water treatment

The Product Profile :

Commonly used wound filter and meltblown filter

Wound filter (also known as honeycomb filter), there are two types: one is polyp

ropylene fiber - polypropylene skeleton filtration, the maximum temperature 60 ℃; the other is cotton fiber - stainless steel frame filter, the maximum temperature 120 ℃.

Raw material of meltblown filter is polypropylene, the maximum operating temperature is 60 ℃. Sophisticated filters can remove suspended solids, colloidal substances and some fine particulate matter and so on.

Parameter of Cartridge filter:

Working pressure:	0.6 / 1.0 / 1.6Mpa
Body Material:	Stainless steel (SUS304, SUS304L, SUS316, SUS316L).
Operating temperature:	5 ~ 40 ℃ (exceed 60 ℃ to be informed)
Design temperature:	5 ℃ -100 ℃
Replace the pressure:	0.05Mpa-0.07MPA
Filter interface:	flat compression, plug-in
Cylinder and base connection mode:	quick opening, flanged
Filtration accuracy:	1μm ~ 100μm
Cartridge Quantity:	1 core to 180 cores
Filter Length:	10 "~ 40"
Seal type:	O-ring or flat washer
Seal Material:	PTFE, rubber.
Outside treating :	matte jet beads, mirror electrolytic polishing.
Sealing material:	nitrile rubber, silicone, Viton, standard configuration for the silicone seal.
Interface Type:	GB, HG, DIN, ANSI, JIS standard flanges, dental mouth, clamps and so on.
Flange Standard:	GB, HG, SH, HGJ, JB, ANSL, JIS and other standards. (User-specified, please indicate the pressure level)
Manufacturing, testing standard:	GB150 standard, or user-specified criteria.
