10 - 40 Inch Water Treatment Accessories , Self Cleaning Filter for Food Grade Water

Name: 10 - 40 Inch Water Treatment Accessories , Self Cleaning Filter for Food Grade Water
Brand: CY-Water
SKU: CY
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (159 reviews)

Large Image : 10 - 40 Inch Water Treatment Accessories , Self Cleaning Filter for Food Grade Water Get Best Price

Product Details:

Place of Origin:	Shanghai, China (Mainland)
Brand Name:	CY-Water
Certification:	ISO,CE
Model Number:	CY

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export Standard and Wood Package
Delivery Time:	In the stock
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Material:	Carbon Steel Or Stainless Steel	Application:	Food Grade Or Industrial Application
On Pressure Rating:	<20 Bar/ 300 Psi	Cover Opening:	V-clamp Hinged
Filter Type:	Stainless Steel Filter Housing	Length:	10 / 20 / 30 / 40 Inch
High Light:	stainless steel filter housing , ro membrane housing

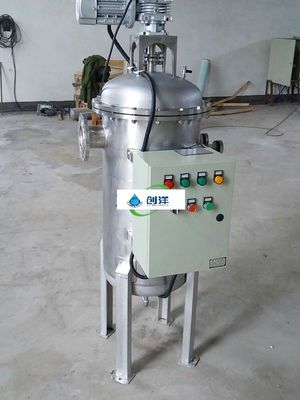

Product Name:Self Cleaning Filter for urban groundwater treatment / water treatment

Product Feature :

Single processing quantity:20--2350m³/h

The maximum work pressure:0.1---1.6Mpa

The pressure damage in cleaning : ≤0.018Mpa

The maximum working temperature:95℃

The precision range of filter:20--3000um

The needed water quantity of selfing cleaning :<1%

Self cleaning time : 10--60 second

Control method of self cleaning :Differential Pressure ,knob and manual

Electrical Control Method : 3 phase 380V/50HZ

Control Interface:Digital display ,button ,switch

Filter net type:316L Weave network ,Wedge-shaped net

Product Parameter :

Type	C01-219	C01-273	C01-325	C01-426	C01-530	C01-630	C01-720	C01-820	C01-920	C01-1020
Pipe Diameter (mm)	50	80	100	200	250	300	350	400	450	500
Filtration Flow(M³/H)	20	50	150	300	500	700	1100	1500	2000	2500
Filtration Area(M²)	0.27	0.25	0.35	0.66	1.6	0.85	1.3	1.4	1.8	2.3
Drain Valve(mm)	25	25	25	50	50	80	80	80	80	80
First cleaning of water (L)	80	80	80	150	150	350	450	600	800	1000
Motor Power(KW)	0.55	0.55	0.55	0.55	0.55	0.75	0.75	0.75	0.75	0.75

Type	D(mm)	H(mm)	H1(mm)	H2(mm)	1.1(mm)	1.2(mm)
X01-219	219	450	830	1130	/	190
X01-273	273	500	885	1185	/	217
X01-325	325	500	945	1170	/	283
X01-426	426	500	1130	1350	325	343
X01-530	530	650	1330	1550	370	415
X01-630	630	685	1360	1660	400	460
X01-720	720	700	1500	1730	400	510
X01-820	820	765	1600	1870	450	600
X01-920	920	900	1720	1980	450	660
X01-1020	1020	920	1850	2100	500	710
