Integrated type ,smart drinking water treatment system ,RO Equipment ,RO System from China
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pipe Material: | UPVC ,SS | Process: | Single RO Filter |
|---|---|---|---|
| Filter Material: | SS , Carbon Steel | Pump Brand: | CNP ,Grundfos |
| Water Standard: | Drinking | Voltage: | 220v , 50HZ / 380 V ,60HZ |

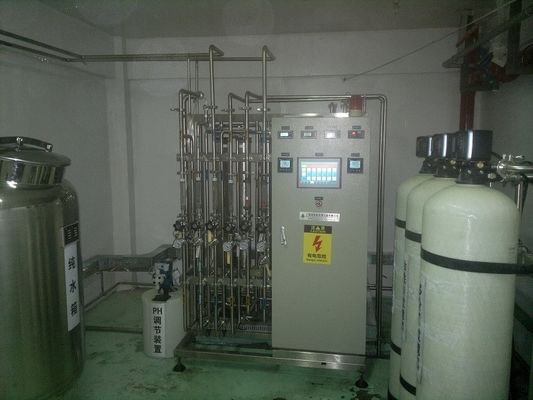

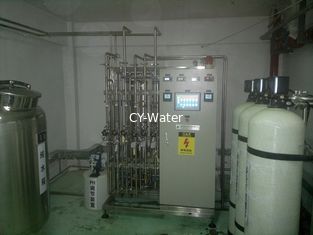

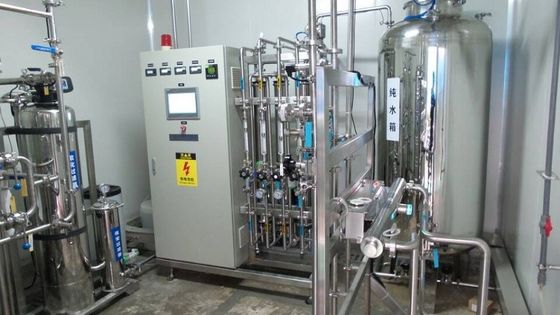

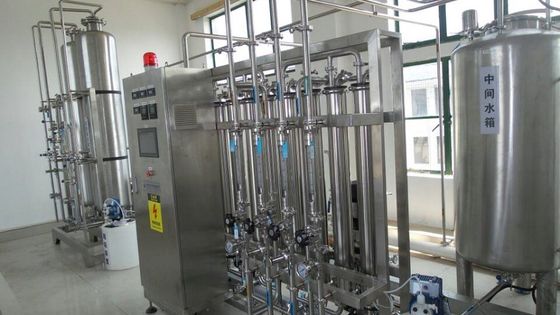

Product Name:Integrated type ,smart drinking water treatment system ,RO Equipment ,RO System from China
Brief instruction :
With development of industry ,contamination of environment have been became worse,harmful impurities in water have more and more . For the RO Membrane have tiny aperture to prevent impurities to enter into water . By intercepting method, the water make better .
CY Water 's process :
First ,we can design scheme according to the condition of the raw water quality ,If there are very high hardness in the Raw Water ,we will adopt softener, even softened resin with high quality ,such as PUROLITE from UK .
Once confimed process of water treatment equipment ,we will make the detailed function description and configuration list by writting to give this customer .
Third the technical department will calculate the price according to confirmed scheme.
Application:
Used for drinking ,food&beverage ,chemical process water,chemicals ,cosmetics,detergents,spices ,scientific research institutes,laboratories and other with pure water .
The Components Function:
| NO. | Items | Information |
| 1.Pre-treatment Section | ||
| 1.1 | Sand Filter | Remove turbidity,SS matter,organic matter,colloid ,etc. |
| 1.2 | Active carbon filter | Remove color ,free chloride,organic matter,harmful matter,etc. |
| 1.3 | Water softener | Soft water and reduce it’s hardness. |
| 2.RO Part | ||
| 2.1 | High pressure pump | Provide power for RO. |
| 2.2 | PP filter | Prevent large particles ,iron ,dust,SS Matter,impurity into RO Membrane. |
| 2.3 | RO Membrane | Removes :lead ,cooper,barium,chromium,mercury,sodium,fluoride,nitrite,nitrate,and selenium. |
| 3.Electricity control System | ||
| 3.1 | PLC+Touch screen control system | Improved from SIEMENS ,CMS |
| 3.2 | Electrivity components | Schneider,Chint |
| 3.3 | Pipe and fitting | Adopt domestic famous brands ,UPVC/Stainless Steel Material |
FAQ:
How do you guarantee your after-sale service ?
Firstly ,our product quality start with design ,reasonable layout ,effectively control water quality for each stage .
Secondly ,we choice the well-know brand components for water treatment equipment ,such as The U.S.A DOW membrane ,Italy SEKO dosing pump ,Grundfos ,SIEMENS etc .
Thirdly ,Our product have remote control functions ,if the equipment occur failure ,our engineer can inspect the system through the computer to find question ,then provide solution for you .
Fourth ,we can provide warranty for 1 year
