Large Capacity Water Filter Systems ,Drinking Water Processing Plants,Industrial r.o.Plant
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Capacity: | 0.25m3/h--200m3/h | Water Quality: | Conductivity ≦10 μs/cm |
|---|---|---|---|
| Material: | SS 304 ,316,UPVC | The Brand Of The Membrane: | DOW ,HYDRANAUTICS,CMS |
| Pump: | CNP,Grundfos | Process: | The Pre-treatment +RO |

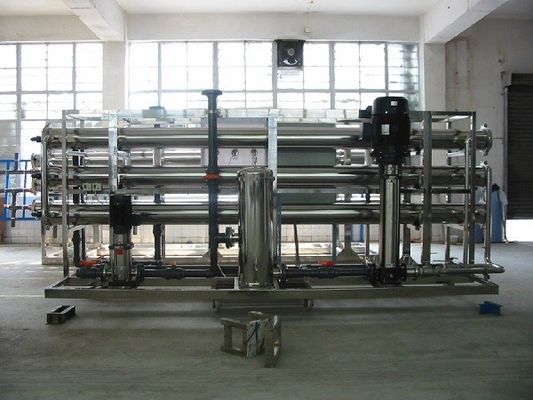

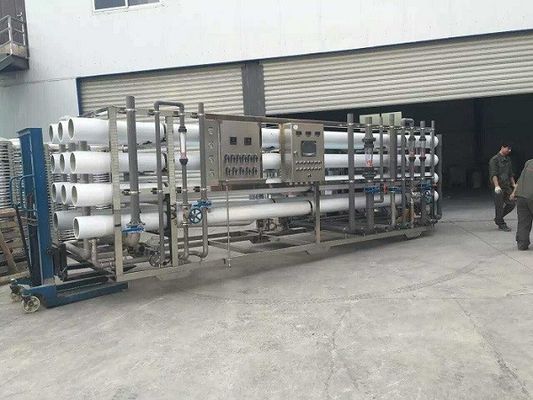

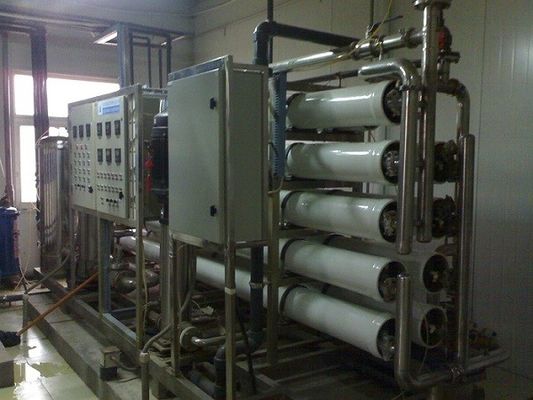

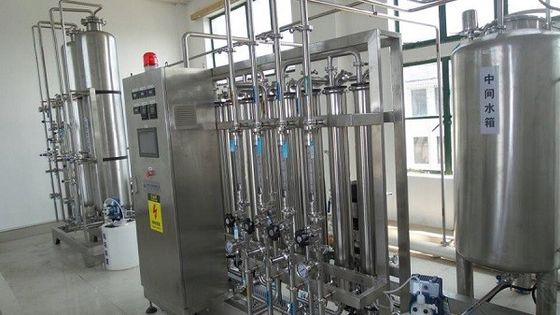

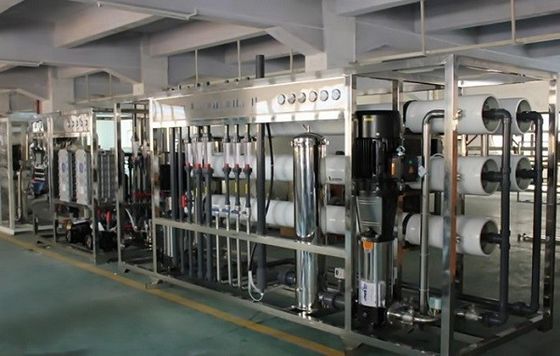

Product Name : Large Capacity Reverse Osmosis Mineral Water Purification Plant
The demand of water quality for foodstuff and beverage industry:
The water in foodstuff &beverage industy usually needs pre-treated water or pure water ,the conductivity is usually below 10us/cm ,which is in line with the hygienic standard of GB17324-2003 Bottles for drinking pure water.
The pure water equipment by we produce fully meets the hygienic standard of GB5749-2006 Drinking water ,GB17328-1998 Bottled drinking pure water ,GB17324-2003 Bottled drinking pure water sanitary standard .
Typical preparation process:
The Raw Water ---The Raw Water Pump---Multi-media Filter---Activated Carbon Filter---Softener Filter---Safe Filter---The first stage HP Pump---The First Stage RO ---Middle Water Tank---The second HP Pump---the second RO ---Pure Water Tank (the new technology )
The Partial Product Sepcification:
|
Type |
Capacity(M3/H) |
Pipe DN (mm) |
WP (MPa) |
Material | Work Method |
| CY-RO-0.25 | 0.25 | DN20 | ≤1.0 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatical |
| CY-RO-0.5 | 0.5 | DN20 | ≤1.0 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatical |
| CY-RO-1 | 1 | DN25 | ≤1.0 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatical |
| CY-RO-2 | 2 | DN32 | ≤1.0 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatical |
| CY-RO-3 | 3 | DN40 | ≤1.0 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatical |
| CY-RO-5 | 5 | DN50 | ≤1.0 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatical |
| CY-RO-10 | 10 | DN75 | ≤1.0 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatical |
| CY-RO-20 | 20 | DN100 | ≤1.6 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatical |
| CY-RO-30 | 30 | DN125 | ≤1.6 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatical |
| CY-RO-40 | 40 | DN150 | ≤1.6 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatical |
| CY-RO-50 | 50 | DN200 | ≤1.6 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatical |
Note:1.Our company can customized according to customer requirements.if customers have any question please contact us in time .
2.Our company keep to revise right at any time ,the company will not be notified if amended.
Company :Shanghai ChongYang Water Treatment Equipment CO.,LTD
Email:Sales@cy-waterequipment.com
Phone:+86 15900488030
Http://www.cy-waterequipment.com
