uf membrane 4040 /uf membrane element/ceramic uf membrane

uf membrane 4040 /uf membrane element/ceramic uf membrane
uf membrane 4040 /uf membrane element/ceramic uf membrane uf membrane 4040 /uf membrane element/ceramic uf membrane uf membrane 4040 /uf membrane element/ceramic uf membrane uf membrane 4040 /uf membrane element/ceramic uf membrane uf membrane 4040 /uf membrane element/ceramic uf membrane

Large Image :  uf membrane 4040 /uf membrane element/ceramic uf membrane Get Best Price

Product Details:

Place of Origin: Shanghai, China (Mainland)
Brand Name: CY-Water
Certification: ISO ,CE
Model Number: CY-MK-01

Payment & Shipping Terms:

Minimum Order Quantity: 50
Price: Negotiation
Packaging Details: Foam package
Delivery Time: 5-8 days
Supply Ability: 10000 set /month
Contact Now
Detailed Product Description
Product Name: Ultrafiltration Membrane Quality: ISO
Use For: Sewage Water

Product Name: inline 4" uf membrane/uf membrane ceramic/uf filter ultra filter membrane

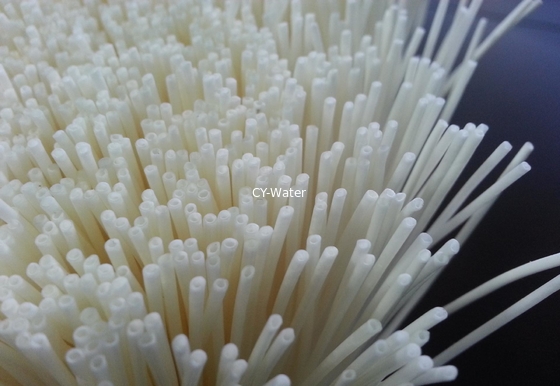

Mani Parameter of PVDF Hollow Fiber Membrane Module
Membrane Type
External Pressure Hollow Fiber
Membrane Material
PVDF
Housing Material
UPVC
Nominal membrane pore diameter
＜0.03µm
Inner & Outer Diameter
Inner & Outer Diameter 0.7*1.3mm

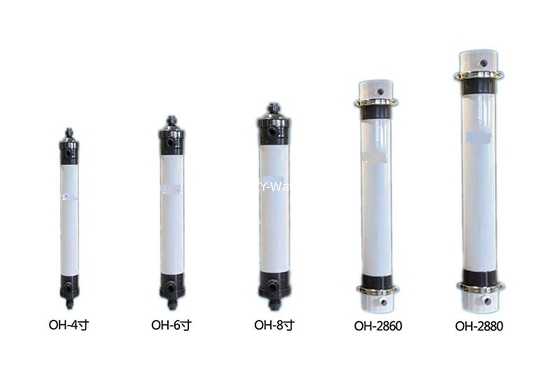

Module Type
OH-4”9010
OH-6”16010
OH-8”20010
OH-UF-2860
OH-UF-2880
Net weight & Water Weight (KG)
4+4
12+12
20+20
40+40
50+50
Membrane Area ㎡
9
20
35
55
73
Overall Size
90*1100
160*1100
200*1100
225*1860
225*2360
Inlet & Outlet Diameter
DN25
DN32
DN40
DN50
DN50
Pure Water Flux
≥2T/H
≥5T/H
≥6T/H
≥10T/H
≥15T/H
Design Flux 0.1Mpa/25℃
0.5-1m³/h
1-1.5m³/h
1.5-2m³/h
2-2.5m³/h
3-3.5m³/h
Interception aperture
0.03μm
Useful Life
3-5 years
Turbidity of produced water
≤ 0.2 NTU
Produced Water SDI
≤ 2.5
TOC Removal Rate
20% ～ 60 %
pH Range
2～11 ( Cleaning 1~12)
Maximum influent turbidity
300 NTU
Maximum inlet pressure
6.0 bar
Filtration flux range
40～120 L/m2.h.bar 25℃(According to inlet condition),
Maximum Membrane Pressure Difference
3bar
Operating temperature range
2-45℃
Maximum influent residual chlorine concentration
200 mg/L
Maximum residual chlorine concentration of cleaning agent
5000 mg/L
Operation Method
Full flow Filtering or cross-flow filtering

uf membrane 4040 /uf membrane element/ceramic uf membrane 0
