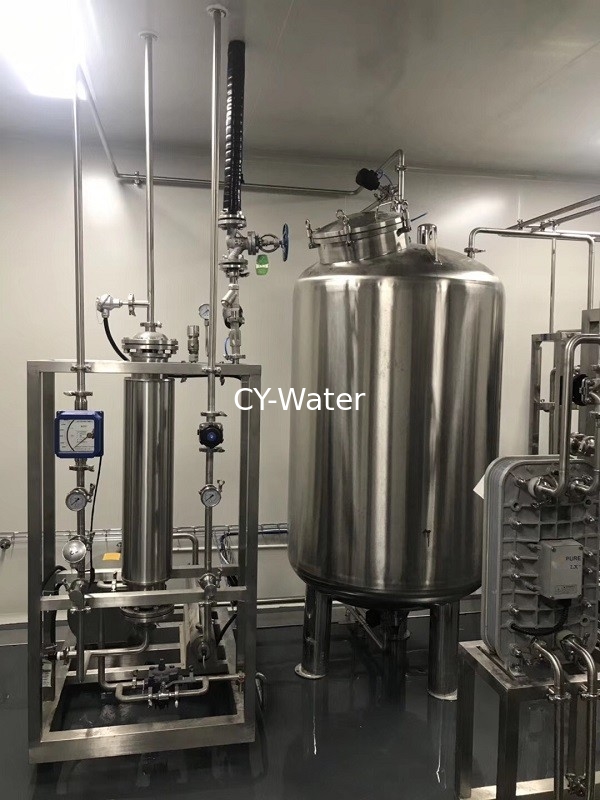

PW And WFI Storage System with Loop pipeline

Name: PW And WFI Storage System with Loop pipeline
Brand: CY-Water
SKU: CY-PW-2000Liter/Hour
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (164 reviews)

Large Image : PW And WFI Storage System with Loop pipeline Get Best Price

Product Details:

Place of Origin:	Made in China
Brand Name:	CY-Water
Certification:	ISO ,CE
Model Number:	CY-PW-2000Liter/Hour

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Export Standard and Wood Package .
Delivery Time:	35 days after receiving the deposit .
Supply Ability:	10 Sets/Month

Contact Now

Detailed Product Description

Conductivity:	2--0.5 μs/cm	Recovery Rate:	>97%
RO Housing:	SS 304 316 8040 4040	Connection:	Clamp ,Welding
Power Supply:	AC 220V / AC 380V / 415V±5% 50 HZ / 60HZ	Valve Control:	Pneumatic , Manual
RO Membrane:	High Temperature Type

Product Name: PW And WFI Storage System with Loop pipeline

PURFIED WATER TANK AND TRANSFER PUMP

The purified water is stored in insulated water tank ,then is transported to the used water points by circulating pump .The circulating pump of pure water is controlled by VFD and interlocked with flowmeter on returned water pipeline and liquid level of pure water tank . The pure water tank is controlled and tested by liquid level of pure water tank . There are 4 points in pure water tank .

To close inlet valve when the water liquid level exceed high-high limit ,meanwhile alarm ;
To close inlet valve when the water liquid level exceed high limit;
To open inlet valve when the water liquid level is lower than the middle limit;
To start circulating pump of pure water when the water liquid level is higher than the middle limit ;
To stop circulating pump of pure water when the water liquid level is lower than low-low limit .

PW And WFI Storage System with Loop pipeline 0
