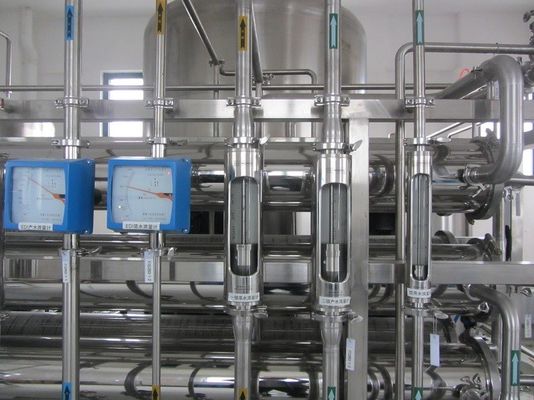

Electrodeionization Pharmaceutical Water Treatment Plant With Micro Computer Control

Name: Electrodeionization Pharmaceutical Water Treatment Plant With Micro Computer Control
Brand: CY-Water
SKU: CY-PW-3000Liter/Hour
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (169 reviews)

Large Image : Electrodeionization Pharmaceutical Water Treatment Plant With Micro Computer Control Get Best Price

Product Details:

Place of Origin:	Made in China
Brand Name:	CY-Water
Certification:	ISO ,CE
Model Number:	CY-PW-3000Liter/Hour

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Export Standard and Wood Package .
Delivery Time:	35 days after receiving the deposit .
Supply Ability:	10 Sets/Month

Contact Now

Detailed Product Description

Conductivity:	2--0.5 μs/cm	Resistivity:	18.25 MΩ.cm
EDI:	GE ,SIEMENS ,Micronix	Process:	According To Client's Demand
Material:	Full SS 304 316	Desalting Rate:	>97%
High Light:	water system for pharmaceutical use , water treatment system in pharmaceutical industry

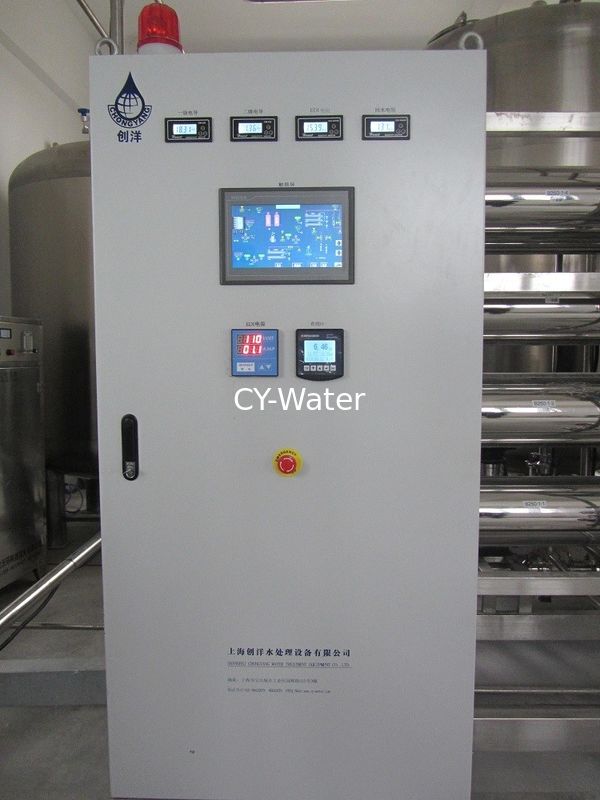

Product Name: Pharmaceutical RO Pure Water Plant Electrodeionization Micro-computer Controller

Standard

The pharmaceutical water system is designed to produce purified water in accordance with the existing Chinese Pharmacopoeia(2010 version),FDA and United States Pharmacopoeia(USP--36),Drinkable water is used as the inlet raw water ,after pretreatment and purification ,the drinkable water is made into pure water which meets requirements of URS.

2. Design Reference Standard

The system design ,installation and documentation are fully in line with the GMP regulations and guidelines settled for a pharmaceutical water system.

Components Function of CY-RO Equipment

Product Name	Function
Raw water tank	Storage raw water ,regulating the water intake,and precipitation of the impurities in the water.
Sand filter	it can remove sediment,impurity ,suspended objects and the other particles in water to reduce turbidity of water.
Carbon filter	The used of carbon adsorption principle that to absorb the different colors,odors,residual chlorine and so on .
Softener	The used of special resin absorb Ca &Mg ions in water ,then replace them ,that to reduce water hardness.
Security filter	Prevent impurity of big particles into Reverse Osmosis Membrane ,resulting in damage to membrane ,that can protect RO Membrane.
Reverse Osmosis	By Principle of Reverse Osmosis to achieve purpose of producing pure water.
Double Stage Pure Water Tank	Storage RO Water ,that provide pure water source for the latter system
PH Regulation System	By PH regulation to reomove CO2 from water to ensure quality of production water .
UV Sterilizer	Killing residual bacteria in water to ensure water quality
Nanofiltration Membrane	Remove bacteria that killed by UV and the other particles .
Ozone Sterilization	Used for cleaning purified water pipe and purified water tank.
Booster Pump of Purified Water	Used for transporting pure water for water points .
