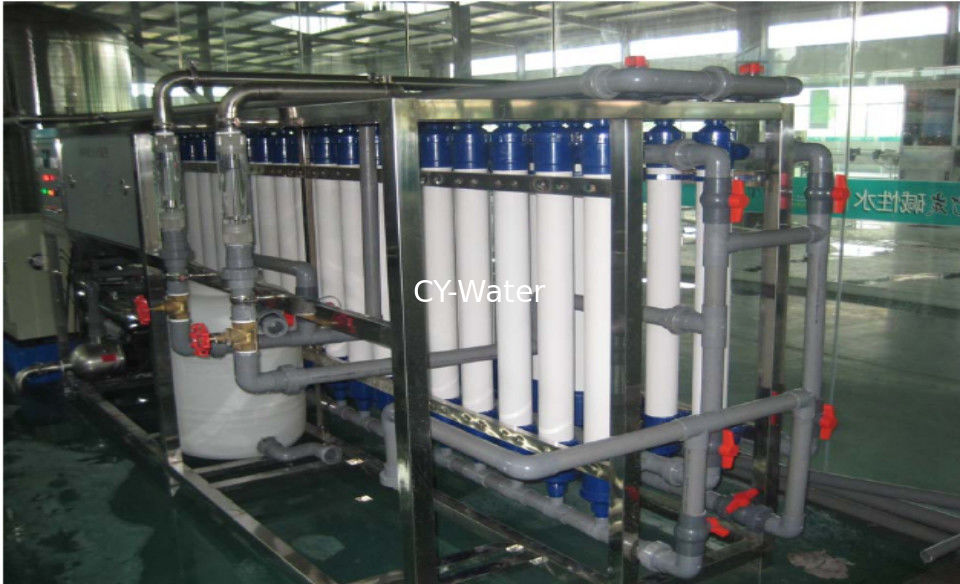

ISO Ultrafiltration Membrane System , Ultrafiltration Water Treatment Plant For Mineral Water
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Capacity: | 10000L/H---50000L/H | Material: | Ceramic , SS304 316 ,UPVC |
|---|---|---|---|
| The Main Components: | Membrane ,Valve ,Pump | The Brand Of Components: | DOW,hydranautics,cms ,Grundfos ,CNP |
| Packaging: | Plastic Bottle | ||
| High Light: | ultrafiltration water treatment plant,membrane filtration equipment |
||
Product Profile:
UF Work Principle:
The Ultrafiltration is used to screening as separation principle ,that is process of membrane separation with the pressure ,the precision of filtration is in 0.005-0.01μm range,which can effectively remove particles ,colloids ,bacteria ,pyrogen and high polymer organic matter in water .It can be widely applied to the separation ,concentration,purification of substances .The Ultra filtration Process has no phase inversion , operation under normal temperature.It is better to separate for pyrogen ,and have good resistance heat ,resistance acid &alkali and oxidation resistance ,and it is continuously used under 60℃ and PH 2-11 for a long time.
- The partial product specification:
| Type | Capacity (M3/H) |
Pipe DN (mm) |
WP (MPa) |
Material | Work Method |
| CY-UF-0.5 | 0.5 | DN20 | ≤0.3 | Stainless Steel/ABS | Full Automatical/Semi-Automatical |
| CY-UF-1 | 1 | DN25 | ≤0.3 | Stainless Steel/ABS | Full Automatical/Semi-Automatical |
| CY-UF-2 | 2 | DN32 | ≤0.3 | Stainless Steel/ABS | Full Automatical/Semi-Automatical |
| CY-UF-3 | 3 | DN40 | ≤0.3 | Stainless Steel/ABS | Full Automatical/Semi-Automatical |
| CY-UF-5 | 5 | DN50 | ≤0.3 | Stainless Stee/ABS | Full Automatical/Semi-Automatical |
| CY-UF-10 | 10 | DN80 | ≤0.3 | Stainless Stee/ABS | Full Automatical/Semi-Automatical |
| CY-UF-15 | 15 | DN100 | ≤0.3 | Stainless Stee/ABS | Full Automatical/Semi-Automatical |
| CY-UF-20 | 20 | DN100 | ≤0.3 | Stainless Stee/ABS | Full Automatical/Semi-Automatical |
| CY-UF-30 | 30 | DN125 | ≤0.3 | Stainless Stee/ABS | Full Automatical/Semi-Automatical |
| CY-UF-40 | 40 | DN150 | ≤0.3 | Stainless Stee/ABS | Full Automatical/Semi-Automatical |
| CY-UF-50 | 50 | DN200 | ≤0.3 | Stainless Stee/ABS | Full Automatical/Semi-Automatical |
Note:1.Our company can customized according to customer requirements.if customers have any question please contact us in time .
2.Our company keep to revise right at any time ,the company will not be notified if amended.
