Automatic UV Sterilizer Ultra Filtration Systems , Fresh Water UF Filtration System

Name: Automatic UV Sterilizer Ultra Filtration Systems , Fresh Water UF Filtration System
Brand: CY-Water
SKU: CY-UF-50000L/H
Price: 1.00 USD
Availability: InStock
Rating: 5 (119 reviews)

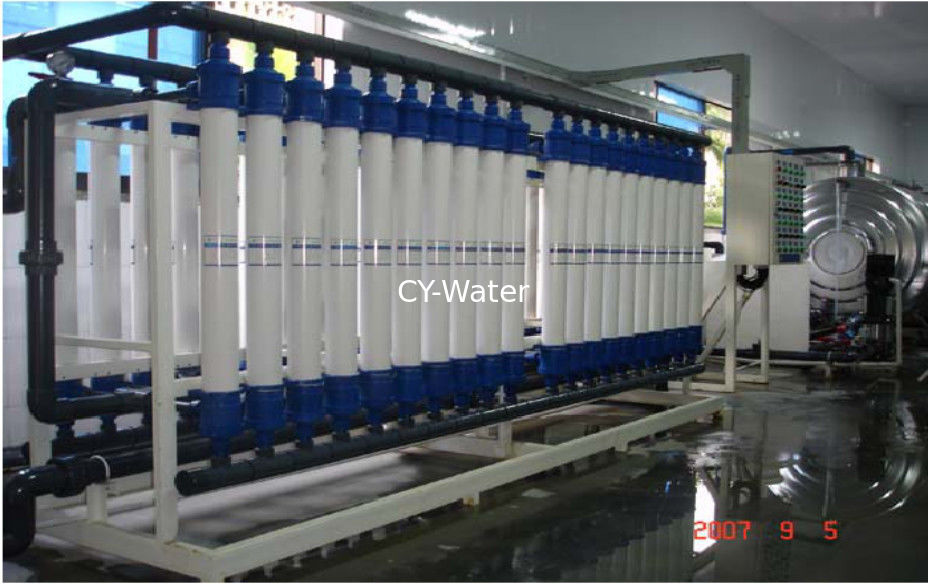

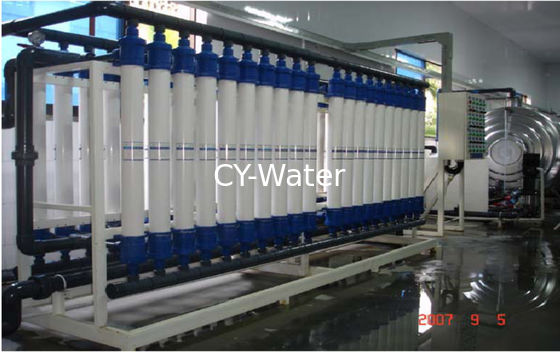

Large Image : Automatic UV Sterilizer Ultra Filtration Systems , Fresh Water UF Filtration System Get Best Price

Product Details:

Place of Origin:	Shanghai in China
Brand Name:	CY-Water
Certification:	ISO ,CE
Model Number:	CY-UF-50000L/H

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export Standard and Wood Package
Delivery Time:	35 days after receiving the deposit .
Payment Terms:	L/C, T/T
Supply Ability:	10 Sets/Month

Contact Now

Detailed Product Description

Capacity:

10000L/H---50000L/H

Usage:

Liquid Filter

Function:

Fresh Water

Application:

Water Purification

High Light:

ultrafiltration water system

ultrafiltration water treatment plant

Product Name: Automatic uv sterilizer purification ultrafiltration system

Classification of Ultrafiltration Membrane

The structure of UF Membrane can be divided into plate frame type(plate type) ,Hollow Fiber Type,Tubular Type ,Coil Type and so on .Among them ,the hollow fiber UF Membrane is the most mature and advanced form of ultrafiltration technology .The outer diameter of Hollow Fiber Membrane is 0.4--2.0mm,the inner diameter is 0.3--1.4mm,hollow fiber tube wall is filled with microporous,the pore size can intercept the molecular weight of the material expression,the interception of the molecular weight of up to several thousand to hundreds of thousands.The raw water flows by pressing of outside side of hollow fiber of inside the cavity ,that forming external pressure and internal pressure type of hollow ultrafiltration membrane respectively .The UF is a dynamic filtration process ,the intercepted molecular can be drainned with concentrate without blocking the surface of the memebrane and can run continuously for a long time.

Technology Parameters:

Item	Description
Operating Pressure	< 300 psig
Maximum Recovery	50% - 75%
Nominal Rejection	95-99%
Operating Temperature	2-35 ºC
Minimum Inlet Pressure	30 psig
Design Temperature	25 ºC
