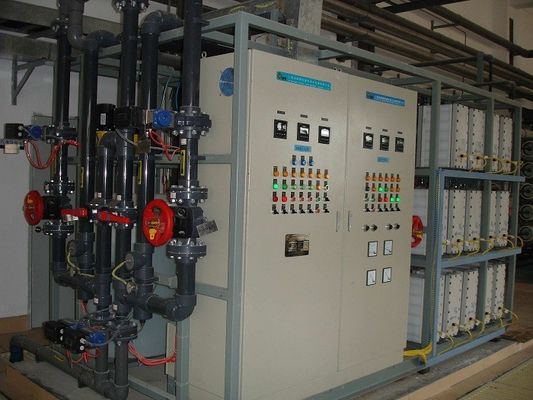

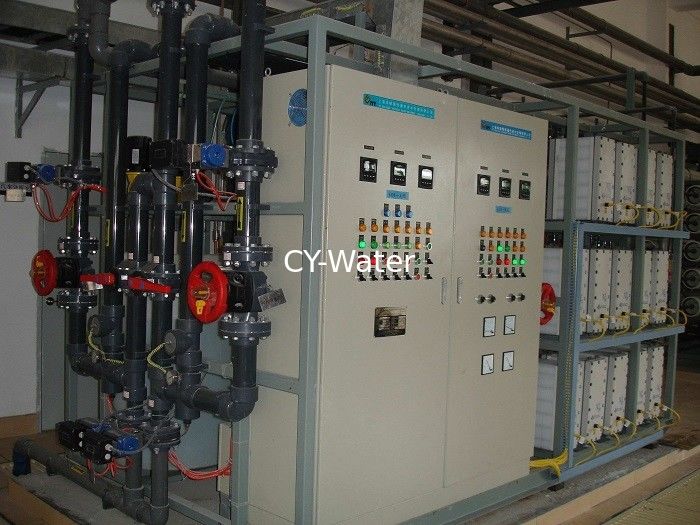

Industry Ultra Pure Water Machine , UPW System for Photoelectric / Silicon Wafer
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Photoelectric ,Silicon Wafer | Power Supply: | AC 220V / AC 380V / 415V±5% 50 HZ / 60HZ |
|---|---|---|---|
| Power: | 2.2kw | The Brand Of Main Components: | DOW,HYDRANAUTICS ,CMS |
| The Process: | Pre-treatment +Double RO +EDI | Electrical Control: | PLC,Manual ,Relay Button |
| High Light: | upw system,ro water purification plant |
||
Product Name: 3000 lph Ultra Pure Water Equipment for semi-conductivity Industry
The demand of water quality of photovoltaic industry:
The large high pure water ,ultra pure water is used for cleaning semi-products ,products ,such as the producing ,processing ,cleaning of the new photovoltaic material ,LCD Display ,PDP plasma display ,top-quality lamp tube ,micro-electric industry ,a large or ultra large of integrated circuits .The higher integration of integrated circuits ,the higher the demand for water quality ,which also put forward more stringent requirement for samplicity ,automation,continuity and sustainability of ultra pure water treatment equipment and technology.
Typical electronic grade Ultra Pure Water Equipment :
☆The pre-treatment---the first RO ---PH Adjust Device---The middle water tank---the second RO ---Pure Water Tank---The Pure Water Pump---UV--Microporous Membrane Filter---The used water points
Technology Parameters:
| Item | Description |
| Operating Pressure | < 300 psig |
| Maximum Recovery | 50% - 75% |
| Nominal Rejection | 95-99% |
| Operating Temperature | 2-35 ºC |
| Minimum Inlet Pressure | 30 psig |
| Design Temperature | 25 ºC |
