FDA,cGMP,GMP,USP Standard reverse osmosis purifier water system for pharmaceutical industry, Chinese brand ,

Name: FDA,cGMP,GMP,USP Standard reverse osmosis purifier water system for pharmaceutical industry, Chinese brand ,
Brand: CY-Water
SKU: CY-PW-3000 Liter / Hour
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (186 reviews)

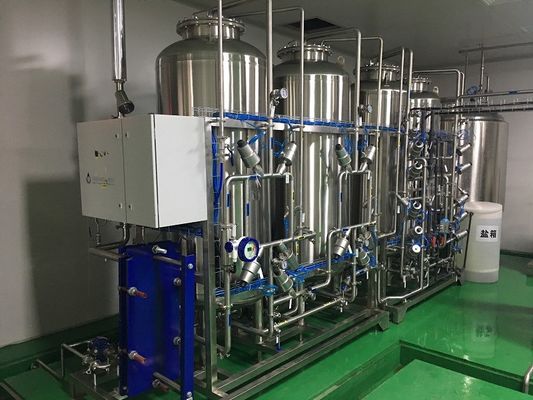

Large Image : FDA,cGMP,GMP,USP Standard reverse osmosis purifier water system for pharmaceutical industry, Chinese brand , Get Best Price

Product Details:

Place of Origin:	Made in China
Brand Name:	CY-Water
Certification:	ISO ,CE
Model Number:	CY-PW-3000 Liter / Hour

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wood package or container
Delivery Time:	25 days
Payment Terms:	L/C, T/T
Supply Ability:	10 sets /month

Contact Now

Detailed Product Description

Material:	Full Stainless Steel	Factory:	Manufacturer
The Main Component:	Pump, Membrane , Valve ,Flow Meter	Brand:	CNP ,Grundfos
Control Way:	PLC ,Relay ,	Control Method:	Semi -automatic , Full Automatic ,Manual
Valve Control:	Manual Control , Pneumatic Valve ,solenoid Valve

Product Name :FDA,cGMP,GMP,USP Standard reverse osmosis purifier water system for pharmaceutical industry, Chinese brand ,

It is important to control microorganism and bacteria for purified water equipment ,which include as following these aspect:

The choice of the host material,all of them adopt Stainless Steel 304 ,316L,BPE standard ,the conveyor part is suggest to automatically weld .
Disinfection Method : Pasteurization and Ozonization .
Pipeline and Valve : between the pipeline of the used point and valve ,we are accord to 3D regulations to execute to prevent dead water ,pipeline has certain slope .equal to 5‰.
The welding process: Our factory have automatcial machinery .
It is important to control flowrate of circulation pipeline.
The various meters monitor in time ,that know the condition of water quality at any time .

We can choose the different disinfection methods according to condition on sit .

Pharmaceutical water is divided into four part :

Item	Process	Way
1	Pre-treatment part	Quartz Sand filter + Activated Carbon filter
2	Reverse Osmosis Device Part	Normal & High temperature Membrane
3	Disinfection Part	Hot water ,Ozone,
4	Distribution Part	U type ,

Main Components of Water System

Item	Parts Name	Brand
1	RO membrane	DOW ,HYDRANAUTICS
2	Valve	Diaphragm Valve ,Burket, Kinglai ,Yuan'an
3	Flowmeter	KROHNE
4	Pump	Grundfos ,CNP
5	Pressure Gauge	WEIKI
6	PLC	SIEMENS

FAQ of Technical Parameter :

Item	Question
1	What is raw water quality ?or do you have report of raw water quality ?
2	How many capacity is it ? we can provide 1000 litre to 100 T per hour .
3	What water quality do you need ? Or where will be it used for ? for drinking ,pharmaceutical ,chemical ,cosmetics and so on .
4	What materials ? UPVC ? Stainless Steel ,304,316?
5	What brand does main components you need ? pump ?RO Membrane ?and so on .
