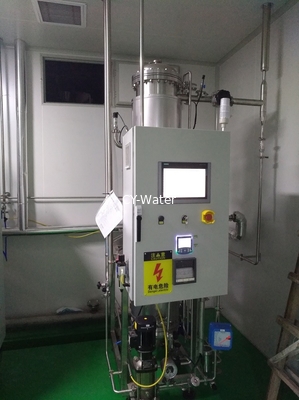

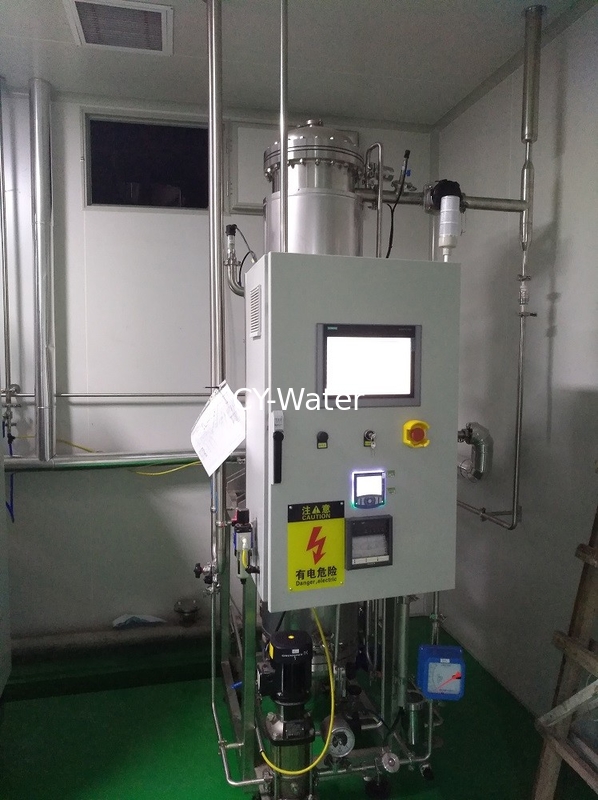

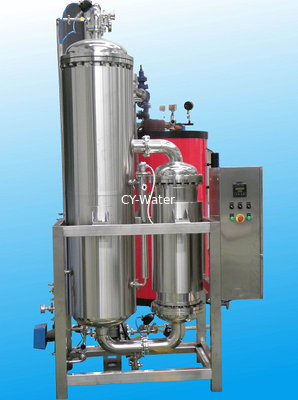

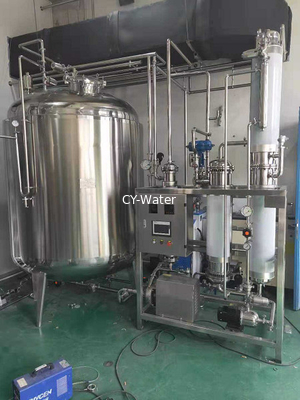

Pure Steam Generator For Disinfection
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | SS304, SS316 | Warranty: | One Year |
|---|---|---|---|
| Type: | CY-PSG-200KGS | Application: | Pharma,Disinfection,Sterilize |
| Capacity: | 100KGS,200KGS,500KGS |
Product Name: Pure Steam Generator For Disinfection
Product Feature
In compliance with FDA,cGMP and pressure vessel requirements.
Condenser,evaporator is double tube sheet design.
All parts which is connect with feed water ,pure steam and condensate water is SS 316L.
Ensure the welding quality ,automatic track welding use the arc for protection.
Inside surface electro chemical polishing to ensure the stainless steel surface smoothness,outside surface is mat finished.
It can use non paper recorder to achieve no paper record ,or use paper recorder to record critical parameter.
Low point drainage.
Insulated design for energy saving .
Sampling is accessible for quality checking purpose
Stable performance ,easy for maintenance.
FAT will be carried out for each finished PSG to ensure quality before use .
CY-Water Spec. & Type
| Type | Capacity | Feed Water | Industry Steam | Height(mm) | Length(mm) | Wide(mm) |
| PS100 | 100 | 115 | 130 | 2100 | 900 | 570 |
| PS200 | 200 | 230 | 250 | 2500 | 900 | 570 |
| PS300 | 300 | 345 | 370 | 2500 | 1100 | 680 |
| PS400 | 400 | 460 | 480 | 2600 | 1100 | 680 |
| PS500 | 500 | 575 | 173 | 2600 | 1170 | 720 |
| PS800 | 800 | 920 | 960 | 3500 | 1775 | 930 |
| PS1000 | 1000 | 1150 | 1200 | 3700 | 1775 | 930 |
| PS2000 | 2000 | 2300 | 2400 | 4000 | 2030 | 1900 |
| PS3000 | 3000 | 3450 | 3600 | 4850 | 2030 | 1900 |
| PS4000 | 4000 | 4600 | 4800 | 5100 | 2200 |
2100 |
