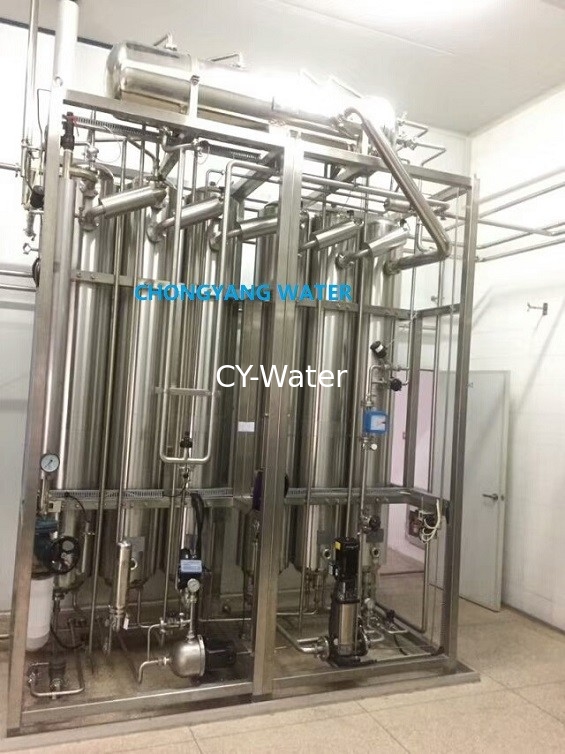

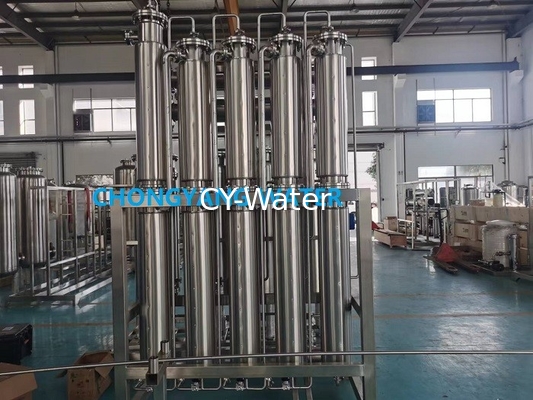

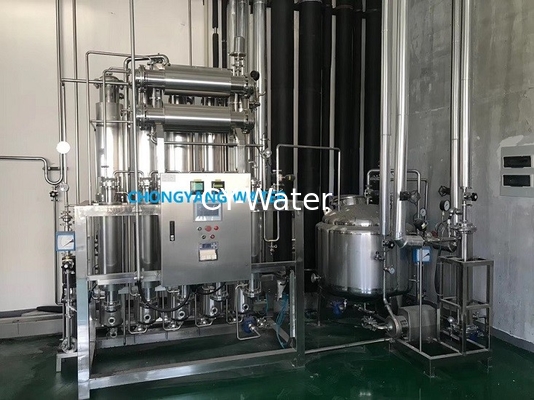

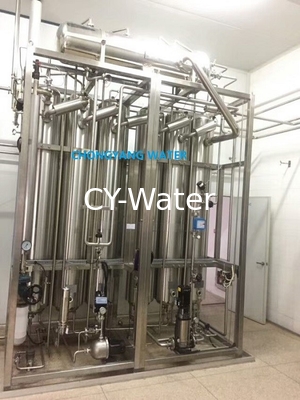

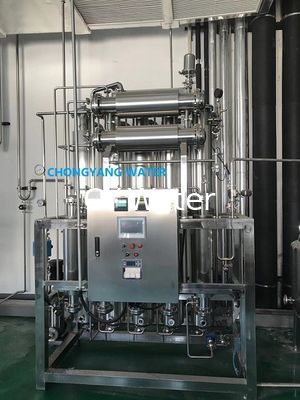

Pharma Distilled Water Machine Water Distillation Equipment For Water For Injection

Name: Pharma Distilled Water Machine Water Distillation Equipment For Water For Injection
Brand: CHONGYANG
SKU: CY-WFI-300Liter/Hour
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (159 reviews)

Large Image : Pharma Distilled Water Machine Water Distillation Equipment For Water For Injection Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	CHONGYANG
Certification:	ISO ,CE
Model Number:	CY-WFI-300Liter/Hour

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Export standard
Delivery Time:	With 30-40 Days
Payment Terms:	L/C, T/T
Supply Ability:	100 Sets/Months

Contact Now

Detailed Product Description

Material:	SS316L	Stages:	4-6 Effects
Conductivity:	1.3μS/cm	Requested Feed Water:	Purified Water System
Standard:	FDA,USP,cGMP,GMP	Pipeline Material:	BPE,SS

Product Description

Product Name:Distilled Water Machine for water for injection in pharma

CHONGAYNG Water Product Features :

5&6 Step separation,external helical structure,falling film flash separation ,180°turn-back gravity separation,external screw centrifugal separation.

Double tube sheet design,prevent cross contamination, expanded connection for both outside and inside tube sheet .

Equipped with buffer tank and collection tank.

The part which is contact with feed water ,cooling water ,pure steam ,distilled water is SS 316L,seal is made of PTFE.

Gravity separation with mesh demister assemble is separated .

Uncondensable air exhaust .

The first evaporator can produce pure steam (Option)

Validation documents :(DQ,IQ,OQ,PQ)

CHONGYANG Water Spec. & Type

Model	Effects	Capacity	Feed Water	Plant Steam	Cooling Water	Height (mm)	Length (mm)	Width (mm)
CY-WS100	4	100	115	45	80	2650	1300	710
CY-WS200	4	200	230	76	120	2650	1360	710
CY-WS200	5	200	230	62	50	2650	1620	710
CY-WS300	4	300	345	109	190	2650	1410	730
CY-WS300	5	300	345	89	90	2650	1730	730
CY-WS500	4	500	575	185	310	3170	1680	900
CY-WS500	5	500	575	148	130	3170	2000	900
CY-WS750	4	750	865	256	300	3260	1680	900
CY-WS750	5	750	865	205	178	3260	2000	900
CY-WS1000	5	1000	1150	295	256	3685	2180	980
CY-WS1000	6	1000	1150	245	65	3685	2830	980
CY-WS1500	5	1500	1725	460	390	3685	2680	1100
CY-WS1500	6	1500	1725	380	95	3685	3150	1100
CY-WS2000	5	2000	2300	540	345	3940	3150	1100
CY-WS2000	6	2000	2300	490	130	3950	3580	1100
CY-WS3000	6	3000	3450	730	190	4050	4000	1200
CY-WS4000	6	4000	3450	910	310	4800	4000	1200
CY-WS5000	6	5000	5750	1140	440	4200	4550	1350
