Industrial Seawater RO Plant Manufacturer for Boiler Feed Water Treatment and Industrial Water Reuse
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Water Source: | Seawater | Technology: | Reverse Osmosis RO |
|---|---|---|---|
| RO Membrane Brand: | DOW / Toray / Hydranautics | Product Water Capacity: | 500L/H – 100m3/h |
| Desalination Rate: | ≥99.5% | Recovery Rate: | 35% – 45% |
| Product Water TDS: | ＜500 Ppm | Feed Water Salinity: | ≤45000 Ppm |
| High Pressure Pump: | Grundfos/CNP | Pretreatment System: | Sand Filter + Carbon Filter |
| Membrane Housing: | FRP / SS316L | Voltage: | 220V / 380V / 415V |
| Certification: | ISO / CE / SGS |
320TPD SWRO System | Industrial Marine RO Plant for High-Capacity Freshwater Production
Introduction
A 320TPD SWRO System is a high-capacity industrial marine desalination solution designed to produce approximately 320 tons of freshwater per day from seawater sources. The industrial marine RO plant is widely used in coastal industrial parks, offshore infrastructure, island utility projects, mining operations, marine engineering facilities, tourism developments, municipal water projects, and large offshore accommodation camps requiring stable large-volume freshwater production.
By integrating advanced seawater pretreatment systems, high-efficiency SWRO membranes, intelligent PLC automation, energy recovery technology, and modular engineering structures, the 320TPD seawater desalination system provides reliable freshwater supply with optimized operating efficiency and stable water quality.
What Is This 320TPD SWRO System?
A 320TPD SWRO System is a large-scale industrial marine reverse osmosis desalination unit engineered to convert seawater into usable freshwater through seawater reverse osmosis membrane technology.
The industrial marine RO plant removes dissolved salts, suspended solids, marine sediments, algae, microorganisms, and seawater contaminants to produce fresh water suitable for municipal freshwater supply, industrial utility water, offshore accommodation facilities, island public water systems, coastal infrastructure projects, marine engineering operations, mining camp water supply, and tourism developments.

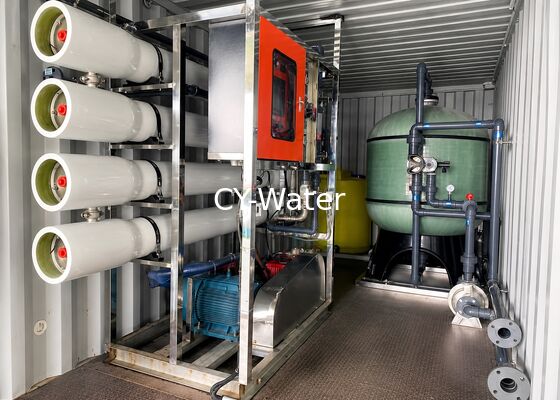

The 320TPD industrial marine RO system generally includes seawater intake pipeline, raw water transfer pump, multi-media filtration system, activated carbon filtration unit, chemical dosing system, cartridge filtration system, high-pressure pump, SWRO membrane pressure vessels, PX energy recovery device, PLC automatic control cabinet, online monitoring instrumentation, freshwater storage tank, UV sterilization system, and containerized or skid-mounted structure.
The 320TPD SWRO system is engineered for continuous industrial freshwater production under offshore and coastal operating conditions while maintaining reliable desalination efficiency and operational stability.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | 320TPD SWRO System |
| System Type | Industrial Marine RO Plant |
| Capacity | 320 Tons Per Day |
| Product Water Flow | Approx. 13,000–14,000 L/H |
| Water Source | Seawater |
| Technology | Seawater Reverse Osmosis |
| Salt Rejection Rate | ≥99% |
| Product Water TDS | ≤500 ppm |
| Recovery Rate | 35–45% |
| Pretreatment | MMF + ACF + Cartridge Filter |
| Membrane Type | SWRO Membrane |
| Membrane Quantity | 28–40 Elements |
| High Pressure Pump | Duplex Stainless Steel |
| Operating Pressure | 55–75 Bar |
| Energy Recovery Device | PX Energy Recovery System |
| Control System | PLC + HMI |
| Monitoring System | Conductivity / Pressure / Flow |
| Cleaning System | Automatic CIP System |
| Frame Structure | Modular Skid Mounted |
| Piping Material | UPVC / SS316L / Duplex |
| Operation Mode | Fully Automatic |
| Power Supply | 380V / 415V / 440V |
| Sterilization System | UV / Ozone Optional |
| Installation Type | Skid Mounted / Containerized |
| Application | Industrial / Offshore / Municipal |
Features & Advantages
1. High Freshwater Production Capacity
The 320TPD SWRO system is suitable for large industrial and municipal desalination projects requiring continuous freshwater production.
2. Advanced Marine RO Membrane Technology
High-performance SWRO membranes provide excellent desalination efficiency and stable freshwater quality.
3. Energy Saving PX Recovery System
The PX energy recovery device significantly reduces power consumption and improves overall operational efficiency.
4. Fully Automatic Industrial Control
The PLC automatic control system supports real-time monitoring, alarm protection, remote communication, and unattended operation.
5. Continuous 24-Hour Industrial Operation
The industrial marine RO plant is engineered for long-term stable operation under harsh offshore and coastal conditions.
6. Corrosion Resistant Marine Materials
Duplex stainless steel and seawater-resistant piping materials improve durability in marine environments.
7. Flexible Modular Engineering Design
The skid-mounted and containerized structure simplifies transportation, installation, maintenance, and future system expansion.
8. Wide Industrial Application Capability
The 320TPD seawater desalination plant can support industrial zones, island infrastructure, offshore projects, tourism facilities, and emergency freshwater supply.
Application Industries
Industrial Water Supply
Industrial facilities near seawater sources use industrial marine RO systems for process water and utility water applications.
Municipal Water Projects
The 320TPD SWRO system supports public freshwater infrastructure projects in coastal and island regions.
Offshore Infrastructure
Offshore operational facilities and marine accommodation camps require reliable freshwater production systems.
Tourism & Resort Developments
Large coastal tourism projects use seawater desalination systems to reduce freshwater transportation dependence.
Mining & Remote Camps
Mining operations in coastal areas use desalination systems for domestic and industrial freshwater supply.
Island Utility Projects
Island public infrastructure requires continuous freshwater production systems for long-term water supply stability.
Marine Engineering Facilities
Temporary marine engineering camps use industrial marine RO systems for worker accommodation and project support.
Emergency Water Supply
The 320TPD SWRO system can support emergency freshwater production during droughts and disaster recovery operations.
Production Process
Seawater Intake
→
Raw Water Transfer Pump
→
Multi-Media Filter
→
Activated Carbon Filter
→
Chemical Dosing System
→
Cartridge Filter
→
High Pressure Pump
→
PX Energy Recovery Device
→
SWRO Membrane System
→
Fresh Water Tank
→
UV Sterilization
→
Freshwater Distribution
Optional Configurations
- PLC Automatic Control
- Touch Screen HMI
- Online Conductivity Monitoring
- UV Sterilization System
- Ozone Sterilization Unit
- Automatic CIP Cleaning System
- PX Energy Recovery Device
- Turbocharger Energy Recovery System
- Remote Monitoring System
- Solar Hybrid Power Integration
- Diesel Generator Support
- Duplex Stainless Steel Piping
- Low Noise Engineering Design
- Containerized Desalination Structure
- Freshwater Mineralization System
- Variable Frequency Drive (VFD)
- Automatic Membrane Flushing
- Remote Data Communication System
Why Choose CHONGYANG WATER
CHONGYANG WATER is a professional manufacturer of seawater reverse osmosis systems and industrial marine desalination equipment for offshore, municipal, industrial, marine, and island freshwater projects worldwide.
Our Advantages
- Professional seawater desalination engineering experience
- Advanced SWRO membrane integration technology
- Factory pre-assembly and performance testing
- Energy-saving desalination engineering design
- Corrosion-resistant marine equipment manufacturing
- Technical support for global desalination projects
- OEM & ODM manufacturing support
- Fast delivery and flexible modular deployment
- Export experience for industrial and offshore projects
- Turnkey seawater desalination solutions
CTA
Looking for a reliable 320TPD SWRO System manufacturer? CHONGYANG WATER provides customized industrial marine RO plants, large seawater desalination systems, offshore freshwater production equipment, and turnkey desalination solutions for global industrial, offshore, municipal, and island projects.
Contact our engineering team today for technical consultation, process design, and competitive quotations for your 320TPD seawater desalination project.
