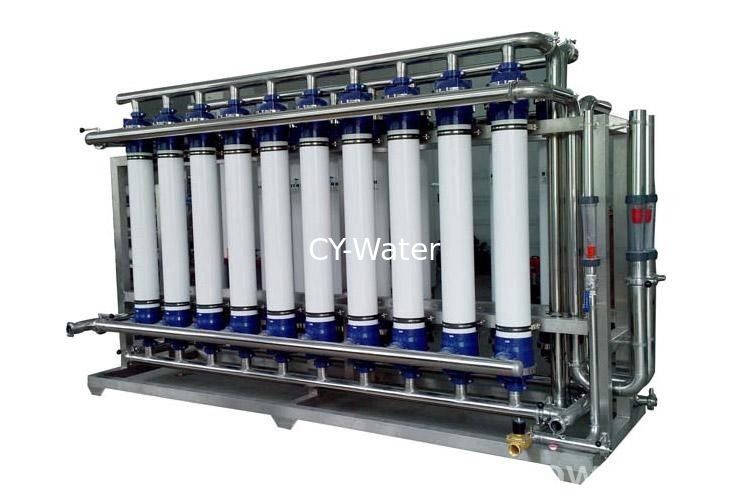

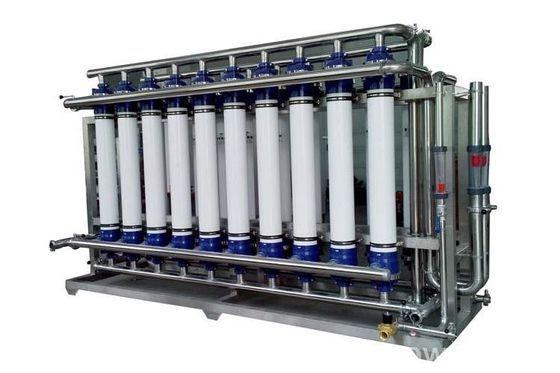

UPVC / SS Hollow Fiber UF Membrane 500~10000 lph Ultrafiltration Machine
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pipeline Material: | UPVC ,Stailess Steel | Recovery Rate: | 50%--57% |
|---|---|---|---|
| Membrane: | Hollow Fibre Membrane | Application: | Commerce,Industry |
| Output Water PH: | 6.4-7.2 | Capacity: | 200 Lph ---10000lph |
| High Light: | ultrafiltration water system,membrane filtration equipment |
||
Product Name: Hollow Fiber UF Membrane 500~10000 lph Ultrafiltration System
Product Profile :
The ultrafiltration systems are usually operated in a pressure range of 10 to 50 psig and they remove particles in size down to as small as 0.02μs/cm.Typical flux(rate of finished water permeate per unit membrane surface area)for UF system is 10 -100gallons per square foot per day(gfd).
Our membrane filtration system uses advanced hollow fiber of ceramic technologies which operate in the outside-in or inside-out direction of flow .Given the small membrane pore sizes used with these technologies,fouling due to deposition of organic and inorganic compounds on the membrane may occur if the ultrafiltration system is not properly designed and operated .Therefore ,we use automated backwashing ,air scour and chemical flushing processes to restrict the rate of membrane fouling within acceptable limits .Chemical cleaning is employed once the maximum trans membrane pressure has been reached ,Typical cleaning agents utilized include acids,caustic,surfactants ,enzymes and certain oxidants ,depending upon membrane material and fouling type .
Common Applications
- Municipal drinking water filtration
- Industrial waste water recovery
- COD reduction
- RO&NF pre-treatment
The Comparision of the kind of membrane :
| Hollow Fibre | Spiral-wound | Ceramic Tubular | Plate and Frame | |
| PH | 2-13 | 2-11 | 3-7 | |
| Feed Pressure(psi) | 9-15 | <30-120 | 60-100 | |
| Backwash Pressure(Psi) | 9-15 | 20-40 | 10-30 | |
| Temperature(°c) | 5-30 | 5-45 | 5-400 | |
| Total Dissolved Solids(mg/L) | <1000 | <600 | <500 | |
| Total Suspended Solids(mg/L) | <500 | <450 | <300 | |
| Turbidity(NTU) | <15 | <1 | <10 | |
| Iron(mg/L) | <5 | <5 | <5 | |
| Oils and Greases(mg/L) | <0.1 | <0.1 | <0.1 | |
| Solvents , phenols(mg/L) | <0.1 | <0.1 | <0.1 |
