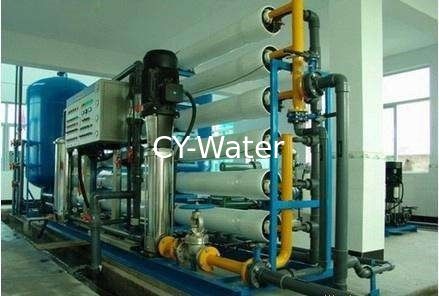

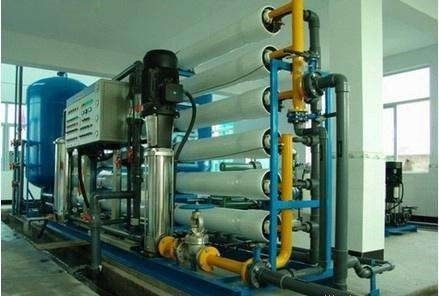

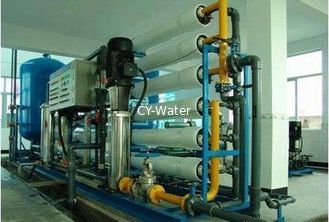

Commercial / Industrial Ultrafiltration Membrane System , 5000 LPH Membrane Filtration Equipment

All Products

Pharmaceutical Water Treatment (125)

Water For Injection Plant (33)

Pure Steam Generator (11)

RO Water Treatment System (63)

Food And Beverage Water Treatment (29)

Boiler Feed Water Treatment System (11)

Ultrafiltration Membrane System (16)

Ultrapure Water Purification System (15)

Laboratory Pure Water Machinery (11)

Seawater Desalination Plant (9)

Water Softener System (10)

Water Treatment Accessories (29)

EDI Module (6)

CIP&SIP System (13)

I'm Online Chat Now

Certification

The products made by CY-Water is excellent . We can get response quickly from them at any time .

—— Mr.Maher

Commercial / Industrial Ultrafiltration Membrane System , 5000 LPH Membrane Filtration Equipment

Name: Commercial / Industrial Ultrafiltration Membrane System , 5000 LPH Membrane Filtration Equipment
Brand: CY-Water
SKU: CY-UF-5000 LPH
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (143 reviews)

Large Image : Commercial / Industrial Ultrafiltration Membrane System , 5000 LPH Membrane Filtration Equipment Get Best Price

Product Details:

Place of Origin:	Made in China
Brand Name:	CY-Water
Certification:	ISO ,CE
Model Number:	CY-UF-5000 LPH

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export Standard and Wood Package
Delivery Time:	35 days after receiving the deposit .
Payment Terms:	L/C, T/T
Supply Ability:	10 Sets/Month

Contact Now

Detailed Product Description

Pipeline Material:	UPVC	Usage:	Drinking
Membrane:	Hollow Fibre Membrane	Application:	Commerce,Industry
Output Water PH:	6.4-7.2	Capacity:	200 Lph ---10000lph
High Light:	ultrafiltration water system , membrane filtration equipment

Product Name: Ultrafiltration UF ultra pure water System for water treatment plant

Classification of Ultrafiltration Membrane

The structure of UF Membrane can be divided into plate frame type(plate type) ,Hollow Fiber Type,Tubular Type ,Coil Type and so on .Among them ,the hollow fiber UF Membrane is the most mature and advanced form of ultrafiltration technology .The outer diameter of Hollow Fiber Membrane is 0.4--2.0mm,the inner diameter is 0.3--1.4mm,hollow fiber tube wall is filled with microporous,the pore size can intercept the molecular weight of the material expression,the interception of the molecular weight of up to several thousand to hundreds of thousands.The raw water flows by pressing of outside side of hollow fiber of inside the cavity ,that forming external pressure and internal pressure type of hollow ultrafiltration membrane respectively .The UF is a dynamic filtration process ,the intercepted molecular can be drainned with concentrate without blocking the surface of the memebrane and can run continuously for a long time.

The Comparision of the kind of membrane :

	Hollow Fibre	Spiral-wound	Ceramic Tubular	Plate and Frame
PH	2-13	2-11	3-7
Feed Pressure(psi)	9-15	<30-120	60-100
Backwash Pressure(Psi)	9-15	20-40	10-30
Temperature(°c)	5-30	5-45	5-400
Total Dissolved Solids(mg/L)	<1000	<600	<500
Total Suspended Solids(mg/L)	<500	<450	<300
Turbidity(NTU)	<15	<1	<10
Iron(mg/L)	<5	<5	<5
Oils and Greases(mg/L)	<0.1	<0.1	<0.1
Solvents , phenols(mg/L)	<0.1	<0.1	<0.1
