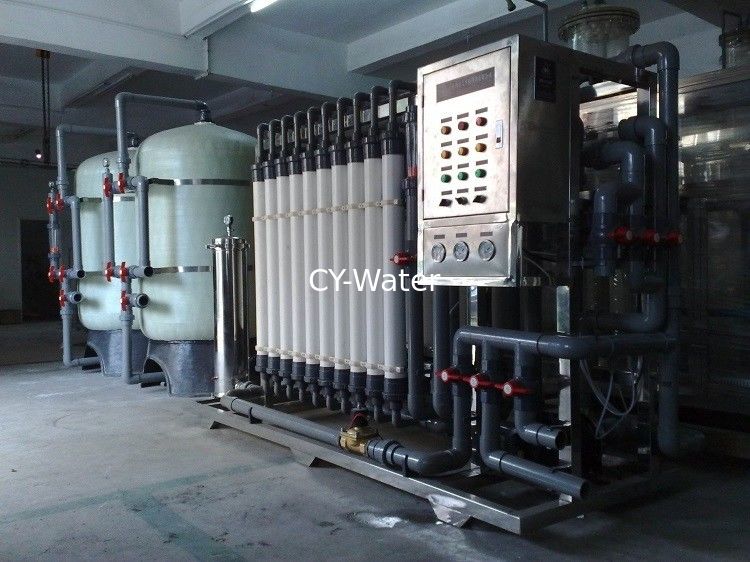

0.5Mpa Ultrafiltration Water Treatment Plant with Water Purify / Water Storage Function

Name: 0.5Mpa Ultrafiltration Water Treatment Plant with Water Purify / Water Storage Function
Brand: CY-Water
SKU: CY-UF-1000L/H
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (169 reviews)

Large Image : 0.5Mpa Ultrafiltration Water Treatment Plant with Water Purify / Water Storage Function Get Best Price

Product Details:

Place of Origin:	Shanghai In China
Brand Name:	CY-Water
Certification:	ISO ,CE
Model Number:	CY-UF-1000L/H

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export Standard and Wood Package
Delivery Time:	35 days after receiving the deposit .
Payment Terms:	L/C, T/T
Supply Ability:	10 Sets/Month

Contact Now

Detailed Product Description

Pipeline Material:	UPVC	Membrane:	Hollow Fiber Membrane
Function:	Water Purify,Water Storage	Work Pressure:	0.5Mpa
Effluent Flux:	1-5t/h	Power Supply:	AC 220V / AC 380V / 415V±5% 50 HZ / 60HZ
High Light:	ultrafiltration water treatment plant , membrane filtration equipment

Product Name:Ultrafiltration ceramic membrane filters water purification system

Product Profile:

Ultrafiltration System(UF System)

The ultrafiltration systems are usually operated in a pressure range of 10 to 50 psig and they remove particles in size down to as small as 0.02μs/cm.Typical flux(rate of finished water permeate per unit membrane surface area)for UF system is 10 -100gallons per square foot per day(gfd).

The Comparision of the kind of membrane :

	Hollow Fibre	Spiral-wound	Ceramic Tubular	Plate and Frame
PH	2-13	2-11	3-7
Feed Pressure(psi)	9-15	<30-120	60-100
Backwash Pressure(Psi)	9-15	20-40	10-30
Temperature(°c)	5-30	5-45	5-400
Total Dissolved Solids(mg/L)	<1000	<600	<500
Total Suspended Solids(mg/L)	<500	<450	<300
Turbidity(NTU)	<15	<1	<10
Iron(mg/L)	<5	<5	<5
Oils and Greases(mg/L)	<0.1	<0.1	<0.1
Solvents , phenols(mg/L)	<0.1	<0.1	<0.1

FAQ:

1. Where is your factory ?

Oure factory is located in Shanghai ,which have convenient transport ,land ,sea ,air transportation in CHINA . and shanghai is the most developed city in China ,that has the highest Chinese GDP economy.

2. What parameter do you provide before we provide offer ?

2.1 The water quality report of the raw water

2.2 What requirement do you need ?

2.3 How many capacity do you need ?

3. Do you have your own certificate ?

Yes ,we have our own patent license about fifteen ,such as Respiration filtration Device for Water Tank,Circulation Sterilizer Device For Water Tank,Pressure Balancing Device,Cation and Anion exchange continuous Cycle Device,Cation and Anion exchange continuous Cycle Device etc.
