Mineral Water Ultrafiltration Membrane System AC 220V 50HZ / AC 380V 60HZ
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pipeline Material: | UPVC , Stailess Steel | Membrane: | Hollow Fiber Membrane |
|---|---|---|---|
| Function: | Water Purify,Water Storage | Condition: | New |
| Process: | Customized | Power Supply: | AC 220V / AC 380V / 415V±5% 50 HZ / 60HZ |
| High Light: | ultrafiltration water treatment plant,membrane filtration equipment |
||

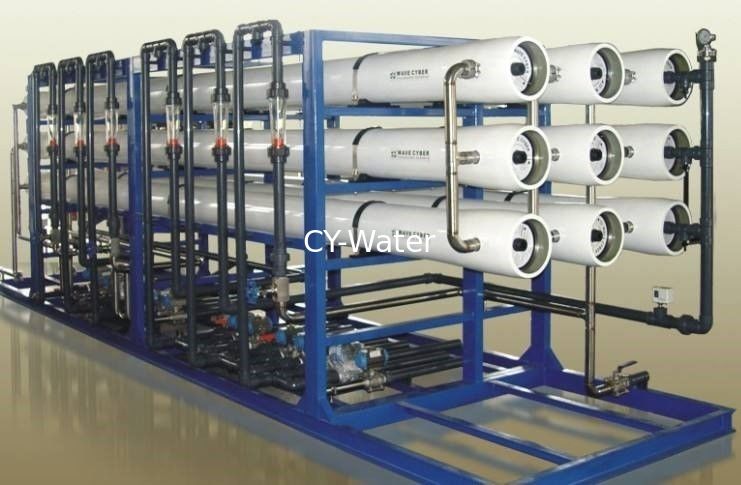

Product Name:Mineral water hollow fiber ultrafiltration membrane system for water treatment
plant
Product Profile:
Our membrane filtration system uses advanced hollow fiber of ceramic technologies which operate in the outside-in or inside-out direction of flow .Given the small membrane pore sizes used with these technologies,fouling due to deposition of organic and inorganic compounds on the membrane may occur if the ultrafiltration system is not properly designed and operated .Therefore ,we use automated backwashing ,air scour and chemical flushing processes to restrict the rate of membrane fouling within acceptable limits .Chemical cleaning is employed once the maximum trans membrane pressure has been reached ,Typical cleaning agents utilized include acids,caustic,surfactants ,enzymes and certain oxidants ,depending upon membrane material and fouling type .
Common Applications
- Municipal drinking water filtration
- Industrial waste water recovery
- COD reduction
- RO&NF pre-treatment
The Comparision of the kind of membrane :
| Hollow Fibre | Spiral-wound | Ceramic Tubular | Plate and Frame | |
| PH | 2-13 | 2-11 | 3-7 | |
| Feed Pressure(psi) | 9-15 | <30-120 | 60-100 | |
| Backwash Pressure(Psi) | 9-15 | 20-40 | 10-30 | |
| Temperature(°c) | 5-30 | 5-45 | 5-400 | |
| Total Dissolved Solids(mg/L) | <1000 | <600 | <500 | |
| Total Suspended Solids(mg/L) | <500 | <450 | <300 | |
| Turbidity(NTU) | <15 | <1 | <10 | |
| Iron(mg/L) | <5 | <5 | <5 | |
| Oils and Greases(mg/L) | <0.1 | <0.1 | <0.1 | |
| Solvents , phenols(mg/L) | <0.1 | <0.1 | <0.1 |
FAQ:
1. Can you customize for consumer ?
Yes, we can customize for you according to your requirement .
2. Are you manufacturer or trading company ?
Yes ,we are manufacturer of water treatment equipment from China .
3. How long will your delivery take?
With 35 days after receiving deposit .
4. How do you guarantee your after-sale service ?
Firstly ,our product quality start with design ,reasonable layout ,effectively control water quality for each stage .
Secondly ,we choice the well-know brand components for water treatment equipment ,such as The U.S.A DOW membrane ,Italy SEKO dosing pump ,Grundfos ,SIEMENS etc .
Thirdly ,Our product have remote control functions ,if the equipment occur failure ,our engineer can inspect the system through the computer to find question ,then provide solution for you .
Fourth ,we can provide warranty for 1 year.
