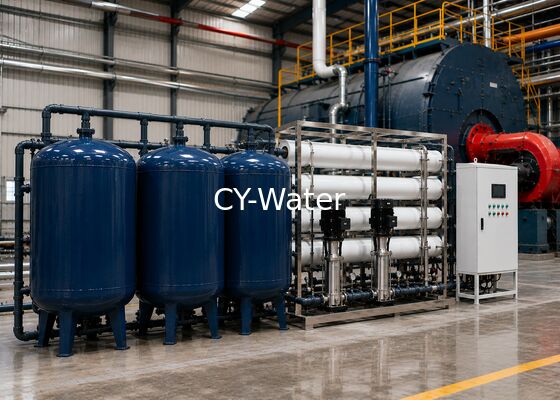

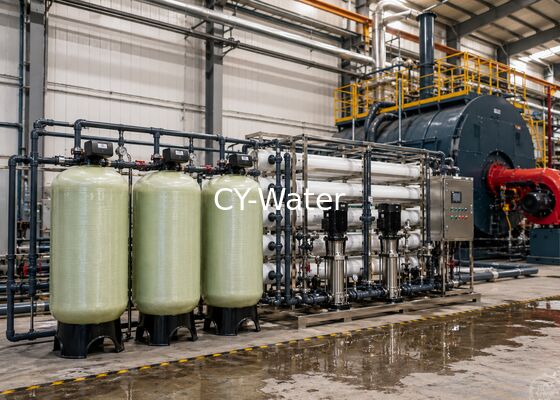

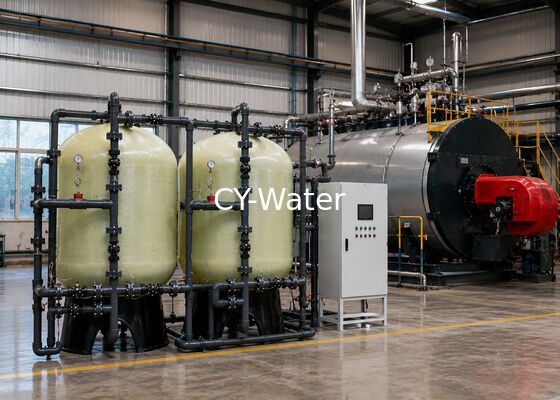

Automatic Boiler Water Treatment Plant for Steam Boiler Applications
Product Name
- Automatic Boiler Water Treatment Plant for Steam Boiler Applications
- Boiler Make-up Water Purification System
- RO Boiler Feed Water System
- Steam Boiler Water Treatment Plant
Product Introduction
An Automatic Boiler Water Treatment Plant for Steam Boiler Applications is designed to produce clean and stable water for industrial steam boiler systems. Poor-quality water may contain hardness, suspended solids, silica, iron, dissolved salts, oxygen, and organic contaminants, which can seriously damage boiler equipment.
If untreated water enters the boiler directly, it may cause scale formation, corrosion of pipelines and heat exchangers, reduced heat transfer efficiency, increased fuel consumption, steam quality instability, boiler pressure fluctuation, equipment blockage, and shortened boiler lifespan.
To solve these problems, a complete boiler water treatment system uses multiple treatment technologies to remove different impurities before the water enters the steam boiler.
Applications
The boiler feed water treatment system is specially designed for boiler water treatment applications, including:
- Industrial Steam Boiler Feed Water Treatment
- Boiler Make-up Water Treatment
- Low-pressure Boiler Water Purification
- High-pressure Boiler Feed Water Treatment
- Steam Boiler RO Water Treatment
- Boiler Softened Water Systems
- Boiler Condensate Water Treatment
- Thermal Boiler Water Purification Systems
- Central Boiler Water Treatment Systems
- Industrial Boiler Water Recycling Systems
How Water Impurities Affect Boilers
Different water impurities may cause different operational problems inside the boiler system.
| Water Impurity | Possible Boiler Problem | Treatment Solution |
|---|---|---|
| Hardness (Ca, Mg) | Scale formation | Water Softener |
| Suspended Solids | Pipeline blockage | Multi-media Filter |
| Chlorine & Organics | RO membrane damage | Activated Carbon Filter |
| Dissolved Salts | High conductivity | RO System |
| Dissolved Oxygen | Corrosion | Deaerator / Degassing |
| Iron & Manganese | Deposits and corrosion | Iron Removal Filter |
| Silica | High-pressure boiler scaling | RO + EDI System |
| Bacteria & Organics | Biofouling | UV Sterilizer |
Each treatment unit plays an important role in protecting the boiler and improving long-term system stability.
Water Treatment Process Flow
Standard Process Flow
Main Functions of Each Treatment Unit
| Equipment | Main Function |
|---|---|
| Multi-media Filter | Removes suspended solids and turbidity |
| Activated Carbon Filter | Removes chlorine and organics |
| Water Softener | Removes hardness ions |
| Security Filter | Protects RO membranes |
| RO System | Reduces dissolved salts and conductivity |
| Degassing System | Removes dissolved oxygen |
| Chemical Dosing Unit | Controls pH and corrosion |
| PLC Control System | Automatic monitoring and operation |
Technical Parameters
| Model | Capacity | RO Membrane | Power Supply | Control System |
|---|---|---|---|---|
| CY-BW-1000 | 1TPH | 4040 RO | 380V / 50Hz | PLC Automatic |
| CY-BW-2000 | 2TPH | 8040 RO | 380V / 50Hz | PLC Automatic |
| CY-BW-5000 | 5TPH | 8040 RO | 380V / 50Hz | PLC Automatic |
| CY-BW-10000 | 10TPH | 8040 RO | 380V / 50Hz | PLC Automatic |

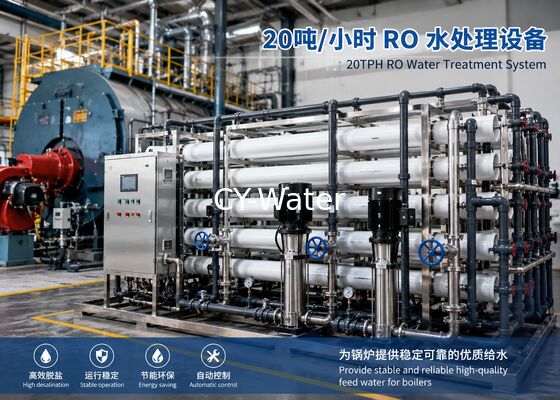

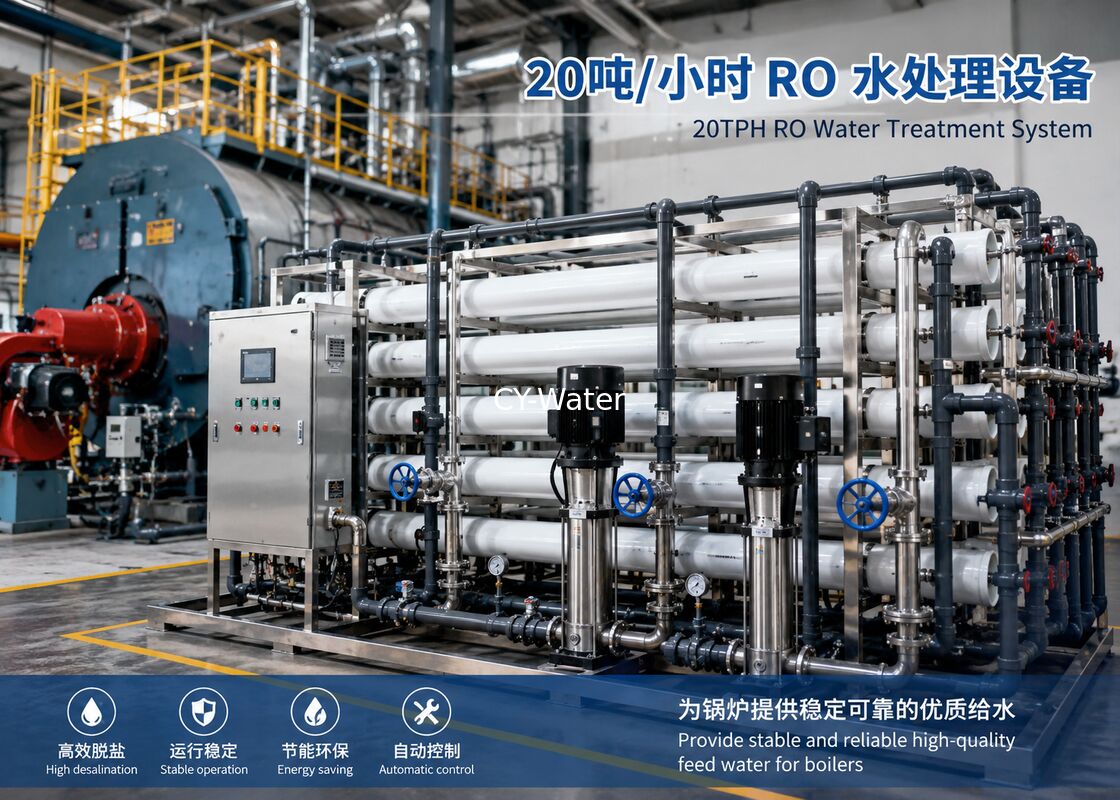

| CY-BW-20000 | 20TPH | Customized | Customized | PLC + HMI |
Customized capacities are available according to project requirements.
Main Configuration List
| Component | Material / Brand |
|---|---|
| Multi-media Filter | FRP / SS304 |
| Activated Carbon Filter | FRP / SS304 |
| Water Softener | FRP + Resin |
| RO Membrane | Vontron / Dow / Hydranautics |
| High Pressure Pump | CNP / Grundfos |
| Security Filter | SS304 / SS316 |
| PLC Controller | Delta / Customized |
| Pipes & Valves | UPVC / SS304 |
| Conductivity Meter | Online Monitoring |
| Chemical Dosing Unit | Automatic |
Certification Standards
- CE Standard
- ISO9001
- Industrial Water Treatment Standards
- Boiler Engineering Standards
- Customized International Standards
Product Features
- Fully Automatic Operation
- Stable Boiler Feed Water Quality
- Energy Saving Design
- Reduced Boiler Scaling
- Reduced Corrosion Risk
- Easy Maintenance
- Long RO Membrane Lifespan
- Customized Engineering Solution
- Compact Skid-mounted Design
- Remote Technical Support
FAQ
Q1: Why is boiler feed water treatment necessary?
Untreated water may cause scaling, corrosion, high energy consumption, and boiler damage.
Q2: Why is water softener important?
The softener removes calcium and magnesium hardness, preventing scale formation inside the boiler.
Q3: Why is RO system used in boiler applications?
RO systems reduce dissolved salts and conductivity, improving steam quality and reducing scaling risk.
Q4: Can the system be fully automatic?
Yes. PLC + HMI automatic control systems are available.
Q5: Can the system be customized?
Yes. We provide customized solutions based on raw water quality, boiler pressure, and production requirements.
Conclusion + CTA
A reliable boiler feed water treatment system is essential for protecting industrial boiler equipment and ensuring stable steam production. Proper water treatment can reduce maintenance costs, improve energy efficiency, and extend boiler service life.
Contact us today for customized technical solutions and professional project support.
