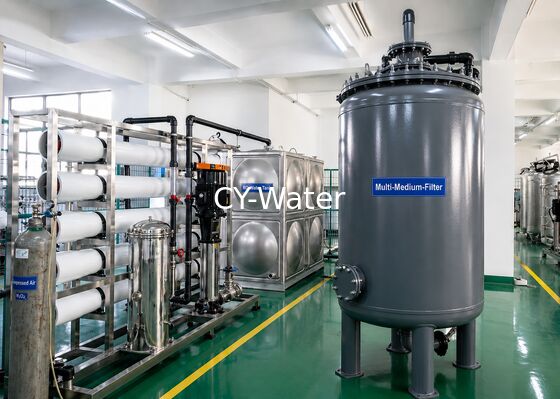

Customized Boiler Feed Water Treatment System with Softener and Degasser
1. Product Introduction
The Customized Boiler Feed Water Treatment System with Softener and Degasser is a fully integrated industrial water treatment solution designed to provide stable, low-hardness, low-corrosion boiler feed water for various steam boiler applications. The system combines multi-stage pretreatment, water softening, reverse osmosis, degassing technology, and automatic control to improve boiler efficiency and reduce operational risks.
In industrial boiler systems, untreated water may contain hardness ions, dissolved oxygen, suspended solids, silica, chloride, and unstable pH levels. These contaminants can lead to scale formation, corrosion, steam instability, reduced heat transfer efficiency, and shortened boiler lifespan.
This solution is widely used as an industrial boiler water treatment system, boiler make-up water system, and steam boiler feed water purification system.
2. Important Water Quality Parameters for Boilers
Stable water quality is essential for safe and efficient boiler operation. Several water quality indicators are especially important in boiler feed water treatment.
| Water Quality Parameter | Importance for Boiler System |
|---|---|
| pH Value | Prevents acidic corrosion and protects metal surfaces |
| Hardness Ca²⁺ / Mg²⁺ | Reduces scale formation inside boiler tubes |
| Conductivity | Controls dissolved salt concentration |
| Dissolved Oxygen | Prevents corrosion and rust |
| Silica | Prevents steam contamination and deposits |
| Total Dissolved Solids TDS | Maintains stable boiler operation |
| Chloride | Reduces corrosion risks |
| Suspended Solids | Prevents pipeline blockage |
| Iron Content | Reduces rust accumulation |
| Temperature Stability | Improves steam generation efficiency |
For industrial steam boilers, maintaining proper pH and low dissolved oxygen is especially important. The degassing system helps remove oxygen from the treated water, while the softener and RO system reduce hardness and dissolved salts.
3. Application Areas
This customized boiler feed water treatment system is suitable for:
- Industrial steam boiler systems
- Textile factory boilers
- Food and beverage steam systems
- Pharmaceutical utility boilers
- Chemical plant boilers
- Hospital boiler rooms
- Laundry steam boilers
- Central heating systems
- Electronics industry boiler systems
- Power plant auxiliary boilers
- Rubber and plastic manufacturing plants
- Industrial heating systems
4. Standard Process Flow Diagram
Boiler Feed Water Treatment Process
Optional Units
- UV Sterilizer
- Chemical Dosing System
- pH Adjustment System
- EDI System
- Online Conductivity Monitoring
5. Technical Parameters
| Model | Capacity | Product Water Conductivity | Hardness Removal | Degassing Efficiency | Control Type |
|---|---|---|---|---|---|
| CY-BFD-1000 | 1 T/H | ≤10 μS/cm | ≥98% | ≥90% | Automatic PLC |
| CY-BFD-3000 | 3 T/H | ≤10 μS/cm | ≥98% | ≥90% | Automatic PLC |
| CY-BFD-5000 | 5 T/H | ≤8 μS/cm | ≥99% | ≥92% | Automatic PLC |
| CY-BFD-10000 | 10 T/H | ≤5 μS/cm | ≥99% | ≥95% | Automatic PLC |
| CY-BFD-15000 | 15 T/H | ≤5 μS/cm | ≥99% | ≥95% | Automatic PLC |
| CY-BFD-20000 | 20 T/H | ≤5 μS/cm | ≥99% | ≥95% | Automatic PLC |
Customized capacities are available according to project requirements.
6. Main System Configuration
| Component | Main Function |
|---|---|
| Raw Water Tank | Stores incoming raw water |

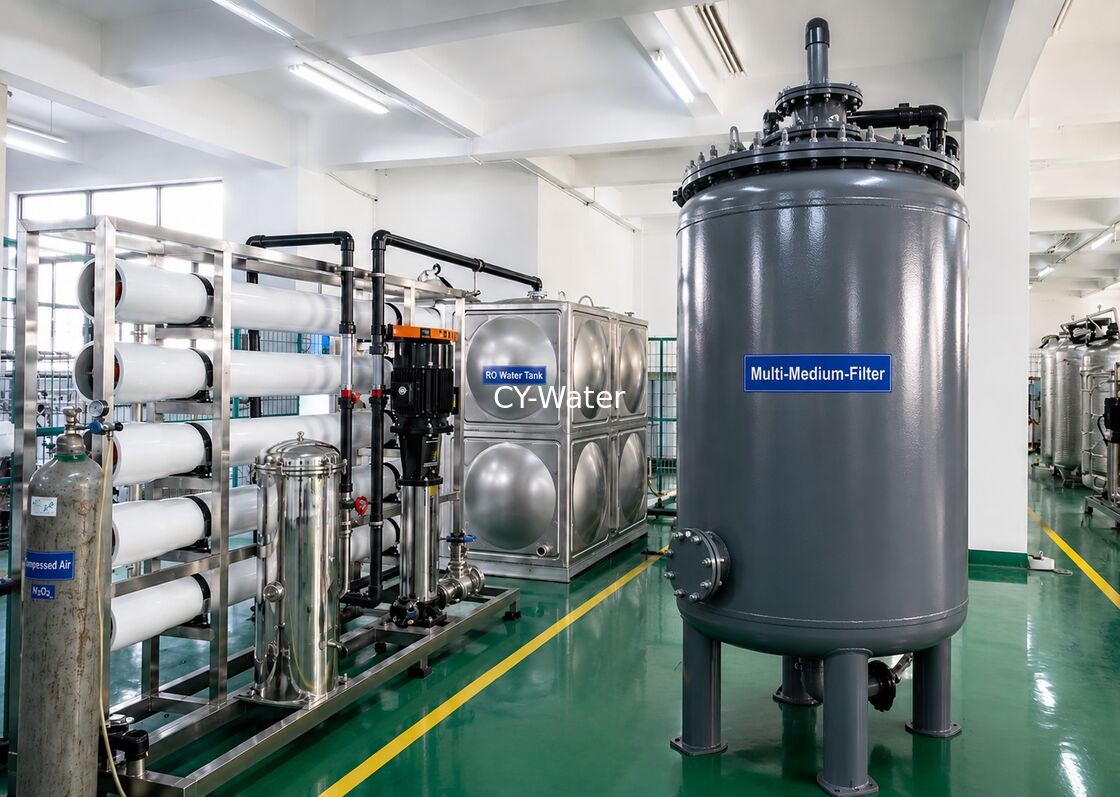

| Multi-Media Filter | Removes suspended solids |
| Activated Carbon Filter | Removes chlorine and organic matter |
| Water Softener | Removes hardness ions |
| Precision Filter | Protects RO membranes |

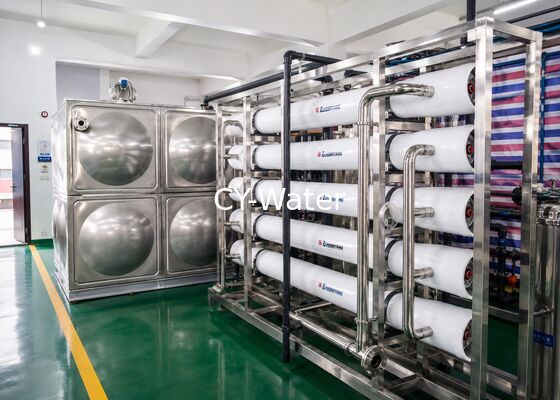

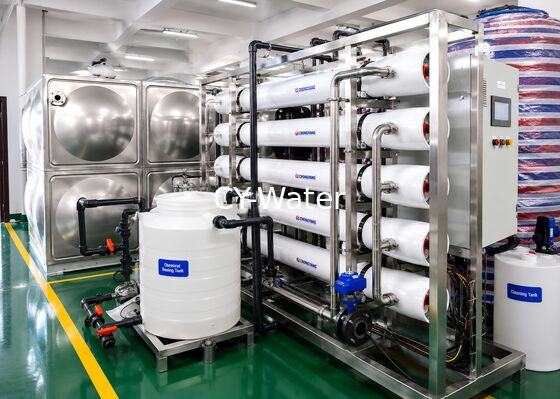

| RO Membrane Unit | Removes dissolved salts |
| Degasser / Deaerator | Removes dissolved oxygen |
| Booster Pump | Maintains stable system pressure |
| PLC Control Cabinet | Automatic operation and monitoring |
| Conductivity Meter | Online water quality monitoring |
| Flow Meter | Measures operating flow |
| Chemical Dosing Unit | Optional pH adjustment |
7. Advantages of the System
- Reduces boiler scaling
- Protects boiler tubes from corrosion
- Improves steam quality
- Reduces fuel consumption
- Extends boiler service life
- Stable pH control
- Low maintenance requirements
- Fully automatic operation
- Compact skid-mounted design
- Energy-saving operation
- Easy installation and maintenance
- Customized engineering solutions
This system is widely used as a boiler feed water RO system, industrial boiler water purification system, and automatic boiler water treatment solution.
8. FAQ
Q1: Why is pH important in boiler feed water?
Proper pH helps prevent acidic corrosion inside boiler tubes and pipelines. Stable pH improves boiler safety and operational reliability.
Q2: Why is dissolved oxygen dangerous for boilers?
Dissolved oxygen can cause serious corrosion and rust inside the boiler system. Degassing or deaeration units help reduce oxygen levels.
Q3: Why is water softening necessary?
Water softening removes calcium and magnesium ions that cause scaling inside heat transfer surfaces.
Q4: Can the system be customized for different boiler capacities?
Yes. The system can be customized according to steam demand, raw water quality, boiler pressure, and installation layout.
Q5: Is automatic control available?
Yes. The system supports fully automatic PLC control with conductivity monitoring, alarm functions, and automatic flushing.
9. CAT
- Advanced RO + softener + degasser combination
- Stable boiler feed water quality
- High hardness removal efficiency
- Reduced corrosion risks
- Low operating cost
- Energy-saving design
- Compact skid-mounted structure
- Automatic PLC operation
- Online water quality monitoring
- Customized engineering support
- Long equipment lifespan
- Suitable for various industrial boilers
- OEM manufacturing capability
- Export-standard industrial design
10. Contact Us
Looking for a reliable Customized Boiler Feed Water Treatment System with Softener and Degasser?
Contact our engineering team for boiler water analysis, customized process design, technical consultation, layout drawings, competitive quotation, and turnkey project support.
