Containerized SWRO System | Containerized Desalination Plant for Seawater Treatment

What Is This Containerized Desalination Plant?

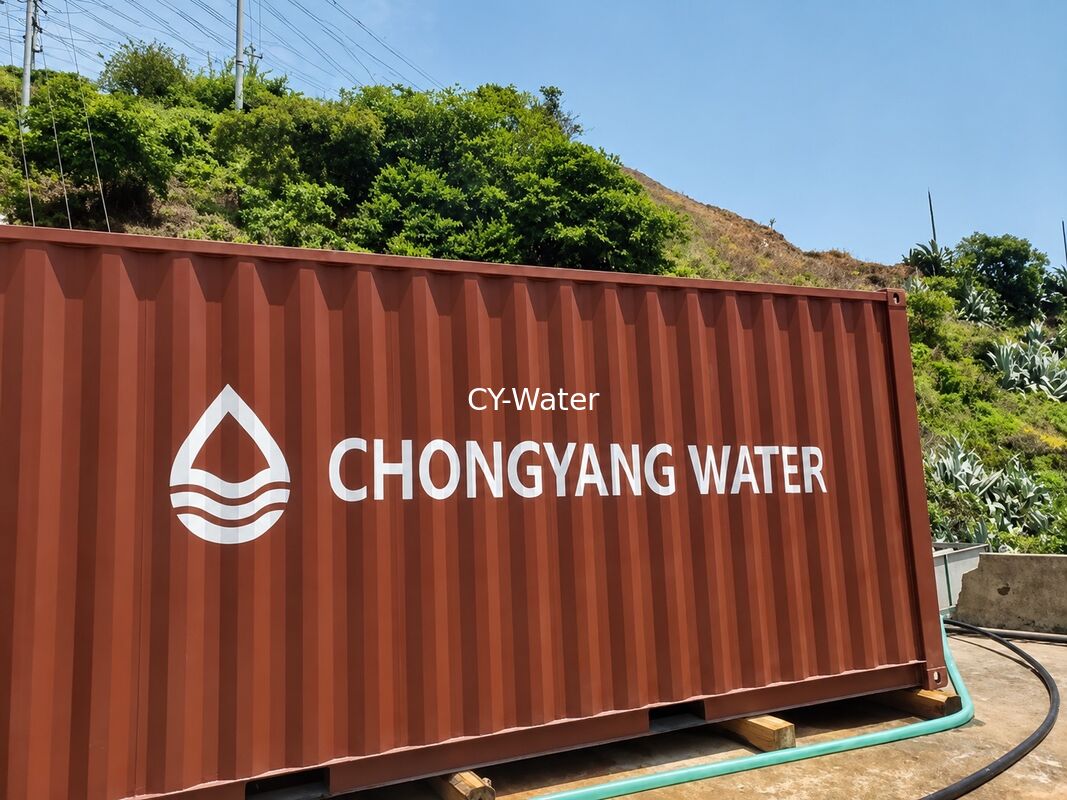

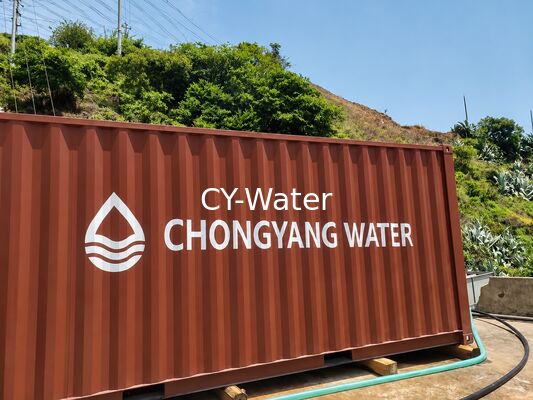

A Containerized SWRO System is a factory-assembled seawater desalination plant built inside a 20ft or 40ft container. Instead of installing each unit separately on site, the main equipment is pre-mounted, pre-piped, pre-wired, and tested before shipment. This design greatly reduces installation time and makes the system suitable for remote locations where civil construction and technical labor are limited.

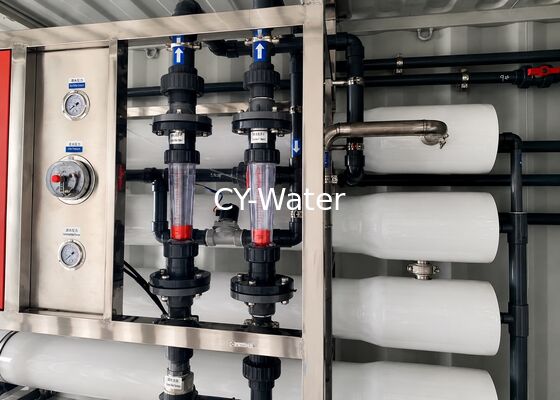

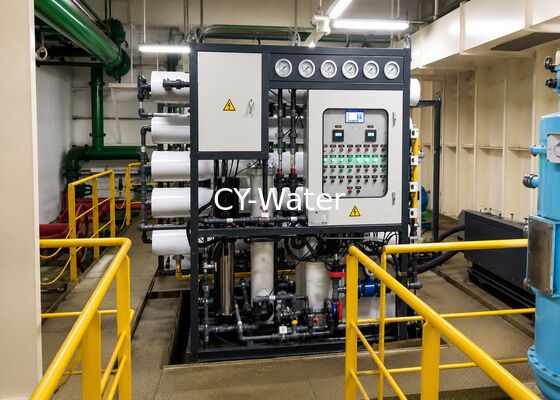

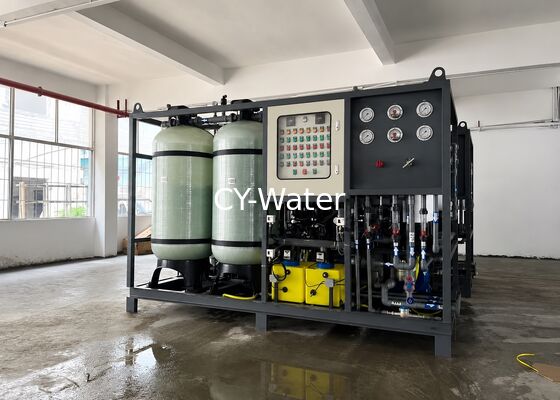

The system uses seawater reverse osmosis technology to remove salt, dissolved solids, suspended particles, bacteria, and impurities from seawater. A complete containerized desalination plant normally includes seawater intake interface, pretreatment filters, cartridge filters, chemical dosing, high pressure pump, SWRO membrane system, control cabinet, instruments, and freshwater outlet.

Compared with traditional site-built desalination plants, a containerized seawater RO plant offers faster delivery, cleaner equipment layout, better protection from weather, easier relocation, and more convenient operation management.

Technical Specifications

Features & Advantages

1. Fast Installation and Commissioning

The containerized desalination plant is pre-assembled inside the container before delivery. Customers only need to connect seawater intake, power supply, product water outlet, and drain line on site.

2. Complete Turnkey Design

The system integrates pretreatment, RO desalination, chemical dosing, control cabinet, instruments, and piping into one compact containerized SWRO package.

3. Suitable for Remote Locations

For islands, offshore camps, coastal villages, and construction sites, containerized SWRO systems reduce dependence on large buildings and complicated site installation.

4. Weather Protection

The container protects pumps, membranes, electrical components, and instruments from sunlight, rain, dust, and harsh marine environments.

5. Modular Capacity Expansion

Multiple containerized desalination units can be installed in parallel to increase production capacity for larger water supply projects.

6. Stable Freshwater Quality

High-quality SWRO membranes and proper pretreatment help maintain stable product water quality for drinking water or industrial applications.

7. Easy Transportation

A 20ft or 40ft containerized desalination plant can be shipped by sea, truck, or rail, making international delivery easier.

8. Lower On-Site Construction Cost

The containerized design reduces civil work, installation labor, and project management complexity, especially in remote regions.

Application Industries

Island Water Supply

A containerized desalination plant is ideal for remote islands where freshwater resources are limited and water transportation costs are high.

Offshore Camps and Marine Projects

Offshore platforms, marine construction sites, and coastal engineering projects use containerized SWRO systems for reliable daily freshwater supply.

Resorts and Hotels

Coastal resorts and island hotels require stable water for guest rooms, kitchens, laundry, landscape irrigation, and utility systems.

Municipal Emergency Water Supply

Containerized seawater RO plants can be used for emergency drinking water supply after droughts, storms, or natural disasters.

Industrial Water Treatment

Factories near coastal areas can use industrial containerized SWRO systems for process water, cooling water, boiler feed pretreatment, or general plant water supply.

Ports and Shipyards

Ports, shipyards, and harbor facilities often require robust seawater desalination systems for equipment cleaning, worker use, and facility water supply.

Production Process

Optional Configurations

• 20ft or 40ft container design
• Energy Recovery Device
• Solar power integration
• Diesel generator connection
• Duplex stainless steel piping
• Automatic membrane flushing
• Online TDS and conductivity monitoring
• Remote monitoring system
• Touch screen HMI
• Air conditioning for electrical room
• Lighting and ventilation inside container
• Anti-corrosion container coating
• Separate chemical dosing room
• CIP cleaning system
• Dual-pass RO system
• Remineralization filter for drinking water
• Container insulation for hot climates

Why Choose CHONGYANG WATER

CHONGYANG WATER provides customized containerized seawater desalination systems for global industrial, marine, island, and municipal water projects. We focus on engineering reliability, practical operation, and long-term system stability.

Our Advantages

• Factory-assembled containerized desalination solutions
• Customized SWRO system design based on seawater quality
• 20ft and 40ft container options
• Turnkey system integration
• OEM and ODM manufacturing support
• PLC automatic control and remote monitoring options
• Professional engineering drawings and technical support
• Export experience for island, offshore, and industrial projects
• Flexible configuration for drinking water and industrial water use
• Direct manufacturer support from design to delivery

Our engineering team can design the container layout, pretreatment process, RO configuration, power system, and optional disinfection system according to your project capacity, raw seawater quality, site conditions, and application requirements.
