5000 L/H AC 220V 380V 415V Water Softener System For Boiler Water / Well Water

I'm Online Chat Now
Certification
China Shanghai ChongYang Water Treatment Equipment CO.,LTD. certification
China Shanghai ChongYang Water Treatment Equipment CO.,LTD. certification
The products made by CY-Water is excellent . We can get response quickly from them at any time .

—— Mr.Maher

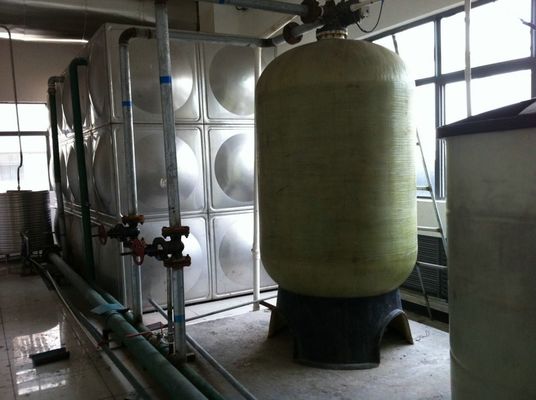

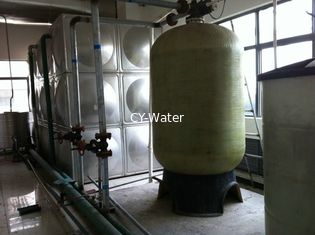

5000 L/H AC 220V 380V 415V Water Softener System For Boiler Water / Well Water

5000 L/H AC 220V 380V 415V Water Softener System For Boiler Water / Well Water
5000 L/H AC 220V 380V 415V Water Softener System For Boiler Water / Well Water

Large Image :  5000 L/H AC 220V 380V 415V Water Softener System For Boiler Water / Well Water Get Best Price

Product Details:

Place of Origin: Shanghai , China (Mainland)
Brand Name: CY-Water
Certification: ISO ,CE
Model Number: CY-SO-5000L/H

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Standard and Wood Package
Delivery Time: 15 days after receiving deposit
Payment Terms: L/C, T/T
Supply Ability: 100 sets/ Month
Detailed Product Description
Resin Brand: Purelite Or Domestic Top Brand Resin Type: 001*7 Strong Acid Cation Exchang Resin
Iron Content: ≤0.3mgl/L Power Supply: AC 220V / AC 380V / 415V±5% 50 HZ / 60HZ
Usage: Remove Calcium , Magnesium Pump: CNP,Grundfos
High Light:

water softener machine

,

water softener treatment systems

Product Name: Water softener, boiler water softener system, water softener for well water



Application of the ro water softener for the water purifier filter:

Industrial: steam boiler water, cooling water, cleaning equipment, water and food, beverages, wine, printing and dyeing, chemical, pharmaceutical, electronics and other industries softening treatment.

Household: air conditioning system water, hotels hotel bath water, laundry water, swimming pool water;



The principle of softening :

Softening Technology is an ion exchange device that take the cation ion exchange into exchange vessel ,called cation ion exchange column ,simply speak softener bed .



Application of softening bed

The softening bed is usually used before the RO Device ,that can reduce and remove Ca2+,Mg2+ in the water to prolong the time that inorganic salt scaling on the RO Device scales ,that can protect RO membrane system .It can also be set in front of the EDI device to acheive requirement of EDI inlet to prevent EDI Mold scale and ensure water quality .in addtion ,the softened bed is usually used for making up of the middle-high pressure boiler ,chemcial ,papermaking process water applications, etc .so as to reduce hardness in the water .



The partial product specification:

Type Capacity (M3/H)

Pipe DN

(mm)

WP

(MPa)

Material Work Meathod
CY-SO-0.5 0.5 DN20 ≤0.4 Stainless Steel/Carbon Steel Full-Automatic/Manual-Automatic
CY-SO-1 1 DN25 ≤0.4 Stainless Steel/Carbon Steel Full-Automatic/Manual-Automatic
CY-SO-2 2 DN25 ≤0.4 Stainless Steel/Carbon Steel Full-Automatic/Manual-Automatic
CY-SO-3 3 DN25 ≤0.4 Stainless Steel/Carbon Steel Full-Automatic/Manual-Automatic
CY-SO-5 5 DN32 ≤0.4 Stainless Steel/Carbon Steel Full-Automatic/Manual-Automatic
CY-SO-8 8 DN40 ≤0.4 Stainless Steel/Carbon Steel Full-Automatic/Manual-Automatic
CY-SO-10 10 DN50 ≤0.4 Stainless Steel/Carbon Steel Full-Automatic/Manual-Automatic
CY-SO-15 15 DN63 ≤0.4 Stainless Steel/Carbon Steel Full-Automatic/Manual-Automatic
CY-SO-20 20 DN75 ≤0.4 Stainless Steel/Carbon Steel Full-Automatic/Manual-Automatic
CY-SO-25 25 DN75 ≤0.4 Stainless Steel/Carbon Steel Full-Automatic/Manual-Automatic
CY-SO-30 30 DN100 ≤0.4 Stainless Steel/Carbon Steel Full-Automatic/Manual-Automatic
CY-SO-35 35 DN125 ≤0.4 Stainless Steel/Carbon Steel Full-Automatic/Manual-Automatic
CY-SO-40 40 DN150 ≤0.4 Stainless Steel/Carbon Steel Full-Automatic/Manual-Automatic
CY-SO-45 45 DN150 ≤0.4 Stainless Steel/Carbon Steel Full-Automatic/Manual-Automatic
CY-SO-50 50 DN200 ≤0.4 Stainless Steel/Carbon Steel Full-Automatic/Manual-Automatic



Note:1. Our company can customized according to customer requirements.if customers have any question please contact us in time .

       2.  Our company keep to revise right at any time ,the company will not be notified if amended.
