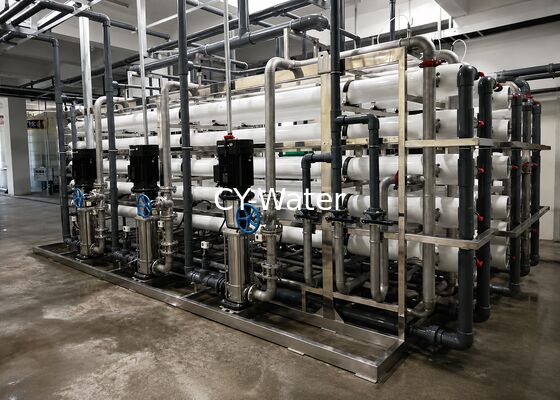

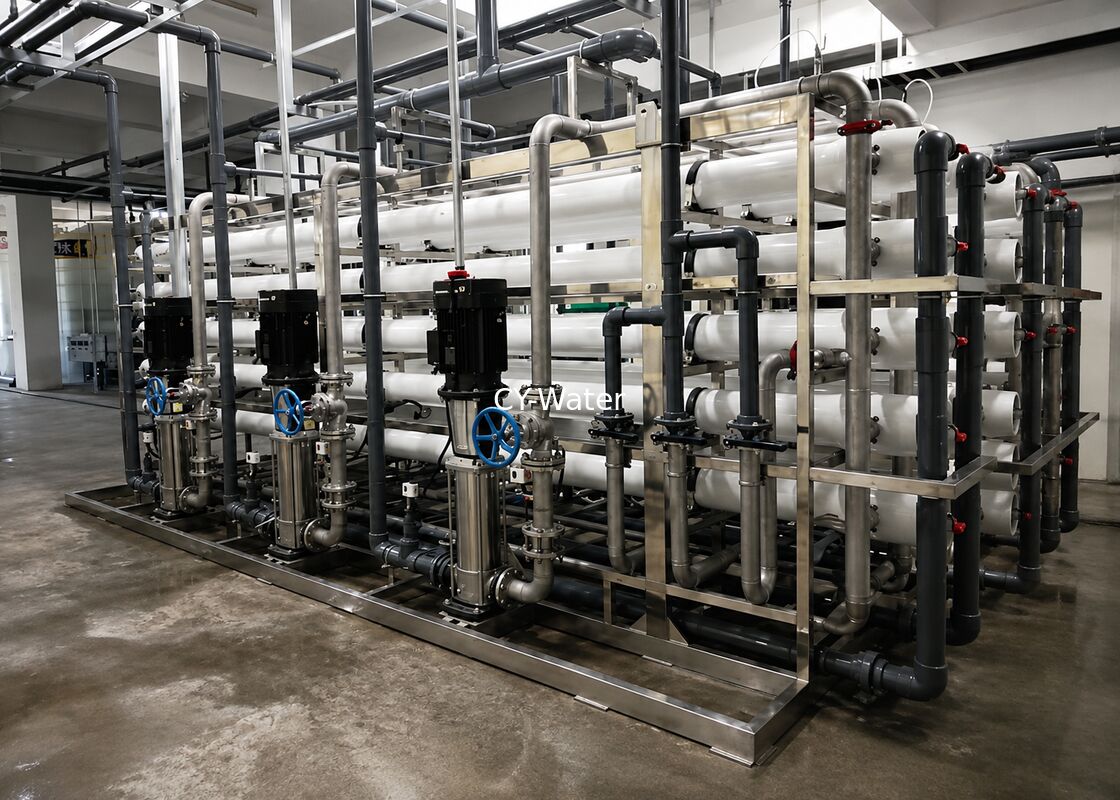

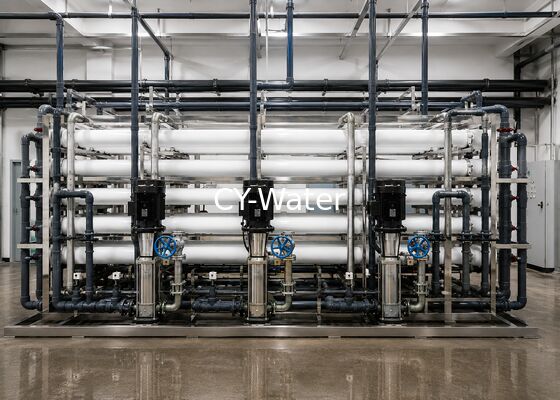

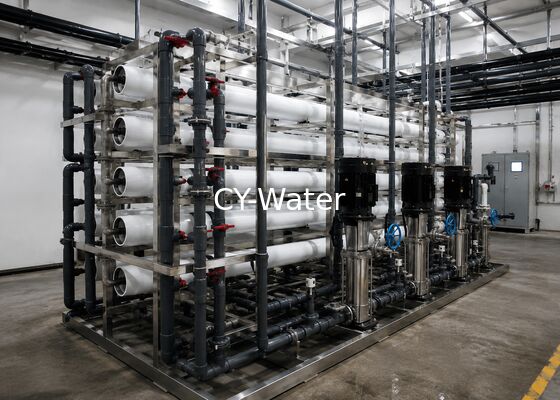

Industrial Boiler Feed Water Treatment System
Product Name
Industrial Boiler Feed Water Treatment System
RO Boiler Feed Water Purification System
Boiler Make-up Water Treatment Plant
Product Introduction
A Boiler Feed Water Treatment System is designed to produce stable and high-quality water for industrial steam boilers. The system removes hardness, suspended solids, dissolved salts, oxygen, silica, and other impurities that may cause scaling, corrosion, or boiler failure.
This system is specially designed for boiler water treatment applications where stable boiler operation, energy saving, and long equipment lifespan are required.
Our boiler water treatment solutions can be customized according to raw water quality, boiler pressure, steam consumption, and required feed water standards.
Applications
- Industrial Steam Boiler Systems
- Low-pressure Boiler Feed Water Treatment
- Medium-pressure Boiler Water Treatment
- High-pressure Boiler Feed Water Systems
- Boiler Make-up Water Treatment
- Steam Generation Systems
- Thermal Boiler Water Supply
- Central Heating Boiler Systems
- Power Boiler Feed Water Treatment
- Boiler Condensate Recovery Systems
Boiler Feed Water Quality Requirements
Stable boiler operation requires proper feed water quality control. Different boiler pressures may require different water quality standards.
| Parameter | Recommended Value |
|---|---|
| Hardness | < 0.03 mmol/L |
| Conductivity | Customized |
| Silica | Low Level |
| pH | 8.5 – 9.5 |
| Dissolved Oxygen | Very Low |
| Iron | < 0.3 ppm |
| Turbidity | < 1 NTU |
| TDS | Reduced by RO System |
Water Treatment Process Flow
Typical process flow:
Optional Systems
- EDI System
- Mixed Bed Polisher
- UV Sterilizer
- PLC Automatic Control
- Online Conductivity Monitoring
Technical Parameters
| Model | Capacity | RO Membrane | Power Supply | Control System |
|---|---|---|---|---|
| CY-BW-1000 | 1TPH | 4040 RO | 380V / 50Hz | PLC Automatic |
| CY-BW-2000 | 2TPH | 8040 RO | 380V / 50Hz | PLC Automatic |
| CY-BW-5000 | 5TPH | 8040 RO | 380V / 50Hz | PLC Automatic |
| CY-BW-10000 | 10TPH | 8040 RO | 380V / 50Hz | PLC Automatic |
| CY-BW-20000 | 20TPH | Customized | Customized | PLC + HMI |
Customized capacities are available.
Main Configuration List
| Component | Material / Brand |
|---|---|
| Multi-media Filter | FRP / SS304 |
| Activated Carbon Filter | FRP / SS304 |
| Water Softener | FRP + Resin |
| RO Membrane | Vontron / Dow / Hydranautics |
| High Pressure Pump | CNP / Grundfos |
| Security Filter | SS304 / SS316 |
| PLC Controller | Sieme / Delta |
| Pipes & Valves | UPVC / SS304 |
| Conductivity Meter | Online Monitoring |
| Chemical Dosing Unit | Automatic |
Certification Standards
- CE Standard
- ISO9001
- Boiler Water Treatment Engineering Standards
- Industrial Water Treatment Standards
- Customized Industrial Standards
FAQ
Q1: Why is boiler feed water treatment important?
Poor water quality may cause scaling, corrosion, reduced heat transfer efficiency, and boiler damage.
Q2: Is RO system necessary for boiler feed water?
For medium and high-pressure boilers, RO treatment is strongly recommended to reduce dissolved salts and improve steam system stability.
Q3: Why is water softener used before RO?
The softener removes hardness ions such as calcium and magnesium, helping prevent membrane scaling.
Q4: Can the system be fully automatic?
Yes. The system can include PLC + HMI automatic control with online monitoring.
Q5: Can the system be customized?
Yes. We provide customized solutions based on raw water quality, boiler type, and required water standard.
Conclusion + CTA
A reliable boiler feed water treatment system is essential for maintaining steam quality, reducing operational cost, and protecting industrial boiler equipment.
Contact us today for boiler feed water solutions, RO + softener systems, industrial steam boiler water treatment, and customized engineering projects.
