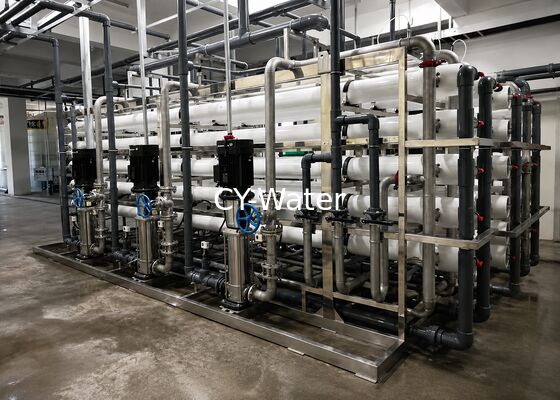

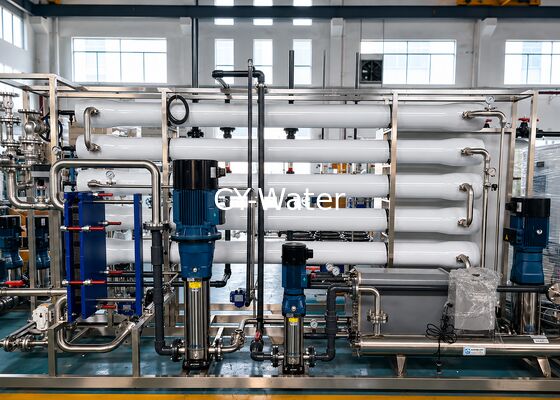

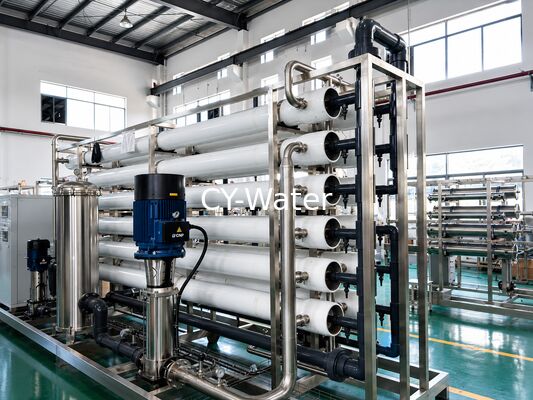

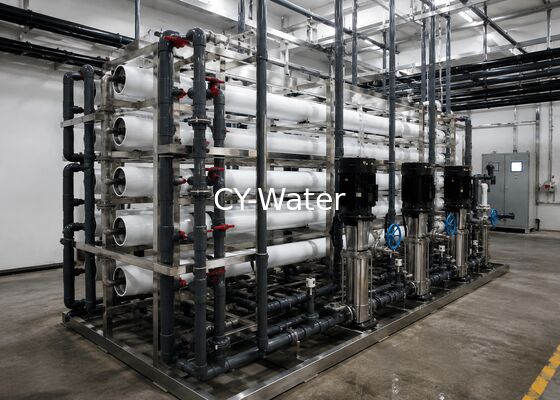

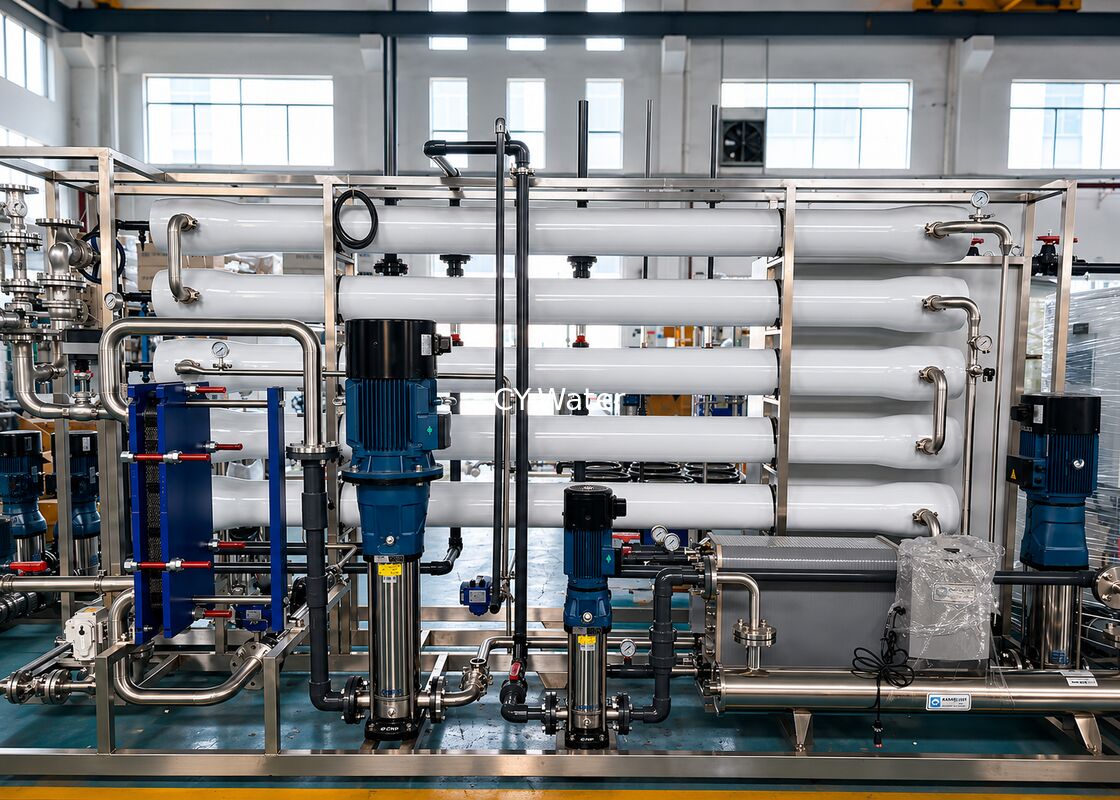

Boiler Feed and Make-Up Water Purification System
1. Product Introduction
The Boiler Feed and Make-Up Water Purification System is a complete industrial RO water treatment solution designed to provide stable, low-conductivity, and high-purity water for industrial steam boiler systems. The system integrates pretreatment filtration, water softening, reverse osmosis purification, automatic monitoring, and intelligent PLC control to improve boiler efficiency and reduce operational risks.
In industrial steam boiler systems, both feed water and make-up water are extremely important. Poor water quality may cause boiler scaling, corrosion, unstable steam production, reduced heat transfer efficiency, and increased fuel consumption.
2. Importance of Feed Water & Make-Up Water for Boilers
In steam boiler systems, feed water directly affects steam quality, heat transfer efficiency, and boiler safety. Make-up water is used to compensate for steam loss, blowdown loss, and system leakage during operation.
If untreated water enters the boiler system, impurities such as hardness ions, silica, dissolved salts, chloride, and oxygen may accumulate inside boiler tubes and pipelines.
- Boiler scaling
- Corrosion
- Steam contamination
- Heat transfer reduction
- Increased fuel consumption
- Boiler tube blockage
- Frequent shutdowns
- Reduced boiler lifespan
3. Application Areas
The Boiler Feed and Make-Up Water Purification System is suitable for:
- Industrial steam boiler systems
- Textile factory boilers
- Food and beverage steam systems
- Chemical plant boilers
- Hospital boiler rooms
- Electronics industry boiler systems
- Central heating systems
- Power plant auxiliary boilers
- Laundry steam boilers
- Rubber and plastic manufacturing plants
- Industrial heating systems
- High-pressure steam boiler applications
4. Standard Process Flow Diagram
Boiler Feed & Make-Up Water Treatment Process
Optional Units
- Chemical Dosing System
- pH Adjustment System
- EDI System
- Online Conductivity Monitoring
- Automatic CIP Cleaning System
5. Advantages of RO Water Treatment for Boilers
Using reverse osmosis technology in industrial boiler water treatment provides several important benefits.
| RO Water Treatment Benefit | Advantage for Boiler System |
|---|---|
| Removes dissolved salts | Reduces scaling risk |
| Lowers conductivity | Improves steam stability |
| Reduces hardness | Protects boiler tubes |
| Removes silica | Prevents steam contamination |
| Improves water purity | Increases boiler efficiency |
| Reduces corrosion risks | Extends equipment lifespan |
| Stable water quality | Reduces maintenance frequency |
| Lower fuel consumption | Saves operating costs |
6. Technical Parameters
| Model | Capacity | Product Water Conductivity | RO Recovery Rate | Hardness Removal | Control Type |
|---|---|---|---|---|---|
| CY-BFM-1000 | 1 T/H | ≤10 μS/cm | 50–65% | ≥98% | Automatic PLC |
| CY-BFM-3000 | 3 T/H | ≤10 μS/cm | 50–70% | ≥98% | Automatic PLC |
| CY-BFM-5000 | 5 T/H | ≤8 μS/cm | 60–70% | ≥99% | Automatic PLC |
| CY-BFM-10000 | 10 T/H | ≤5 μS/cm | 60–75% | ≥99% | Automatic PLC |
| CY-BFM-15000 | 15 T/H | ≤5 μS/cm | 60–75% | ≥99% | Automatic PLC |
| CY-BFM-20000 | 20 T/H | ≤5 μS/cm | 60–75% | ≥99% | Automatic PLC |
Customized capacities are available according to project requirements.
7. Main System Configuration
| Component | Main Function |
|---|---|
| Raw Water Tank | Stores incoming raw water |
| Multi-Media Filter | Removes suspended solids |
| Activated Carbon Filter | Removes chlorine and organics |
| Water Softener | Removes hardness ions |
| Precision Filter | Protects RO membranes |
| RO Membrane Unit | Removes dissolved salts |
| High Pressure Pump | Provides RO operating pressure |
| Conductivity Meter | Online water quality monitoring |
| Flow Meter | Measures operating flow |
| PLC Control Cabinet | Automatic system operation |
| UV Sterilizer | Optional microbial control |
| Degassing Unit | Removes dissolved oxygen |
8. FAQ
Q1: Why are feed water and make-up water important for boilers?
Feed water directly affects steam generation efficiency and boiler safety. Make-up water compensates for steam and blowdown losses during operation. Stable water quality helps reduce scaling and corrosion.
Q2: Why is RO water used for boiler systems?
RO water removes dissolved salts, hardness, silica, and conductivity, helping improve boiler efficiency and reduce maintenance costs.
Q3: Can the system reduce fuel consumption?
Yes. Cleaner boiler tubes improve heat transfer efficiency, reducing fuel usage and operational costs.
Q4: Is the system fully automatic?
Yes. The system supports automatic PLC operation with conductivity monitoring, automatic flushing, and alarm protection functions.
Q5: Can the system be customized?
Yes. The system can be customized according to boiler pressure, steam demand, raw water quality, and installation layout.
9. CAT
- Stable low-conductivity water production
- High RO recovery efficiency
- Reduced boiler scaling risks
- Improved steam generation efficiency
- Water-saving operation design
- Reduced maintenance frequency
- Fully automatic PLC control
- Compact skid-mounted structure
- Easy installation and maintenance
- Long membrane service life
- Customized engineering support
- Suitable for low and high-pressure boilers
- Export-standard industrial design
- Reliable boiler water purification performance
- OEM manufacturing capability
10. Contact Us
Looking for a reliable Boiler Feed and Make-Up Water Purification System?
Contact our engineering team today for boiler water analysis, customized process design, technical consultation, layout drawings, competitive quotation, and turnkey project support.
